Cattle Loading Ramps

ProWay products are proudly designed and manufactured in Australia, and installed all over the world.

Improve Loading Efficiency and Safety

ProWay has designed a range of cattle loading ramps that are regarded by livestock carriers as the best available for safety and stock-flow.

We have been employed by private and public organisations to design, manufacture and install loading and unloading ramps on farms and feedlots, through to large scale abattoirs and saleyards.

ProWay has also worked with The Livestock Transport Association of Victoria (LTAV) in developing an approved loading ramp design guide for varied applications.

Our cattle yard loading ramp range is second to none and has been developed over many years through research and incorporating customer feedback. Everything we do ProWay must benefit you and your needs as a customer.

Our product range and customisation capabilities, mean our library of cattle loading ramps is vast. All of our loading ramps are proudly designed and manufactured in Australia. We know we have the best loading and unloading cattle solutions on the market.

ALRTA Ramp Guide

ALRTA Ramp Guide

Download Now

ProWay builds over 200 unique loading ramps a year

We appreciate you have unique requirements when it comes to loading stock, but below you’ll find a selection of our most popular cattle ramps.

We can customise ramps to suit individual requirements, such as: livestock breed and species, access walkways, deck heights, retaining walls, existing infrastructure, electric or manual winches and other individual needs.

If you can’t see an option you think will work, get in contact with ProWay as we’d love to know what you need.

Cattle Loading Ramp
Cattle Loading Ramp

ProWay’s loading ramp range is the result of years of research, product development and customer feedback and today are recognised as the best on the market.

Cattle Loading Ramps Range

ProWay has a vast range of loading solutions for varying cattle enterprises and requirements.

All ramps are proudly Australian made, in accordance with Australian Standards and are regarded by farmers and stock carriers as the best on the market, in terms of stock flow, operator safety and efficiency. We’ve built cattle ramps in every state and territory and stand by our products in terms of safety, quality and longevity. We don’t think you’ll regret installing a ProWay cattle ramp.

Mobile Cattle Loading Ramps Read More
Permanent Cattle Loading Ramps Read More
Commercial Cattle Loading Ramps Read More

Mobile Cattle Loading Ramps

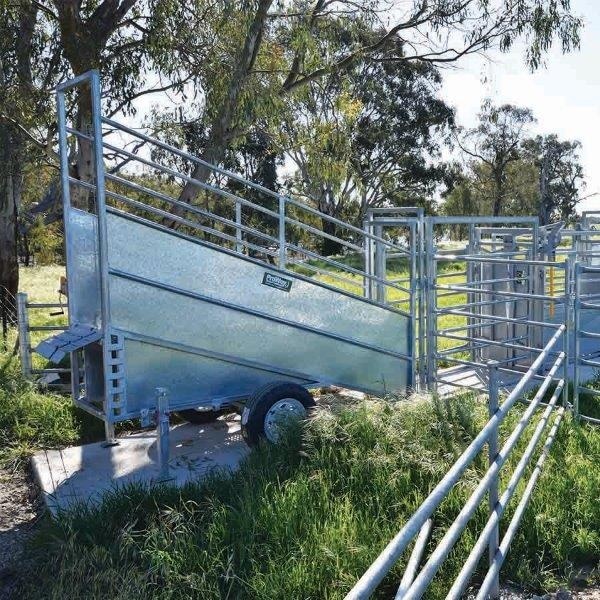

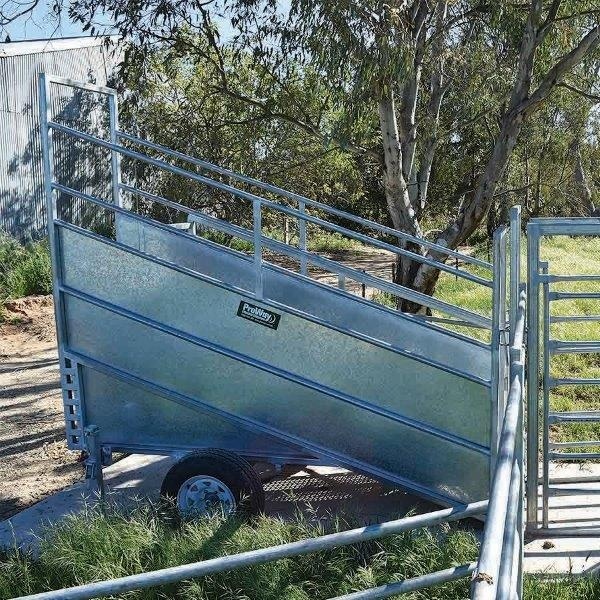

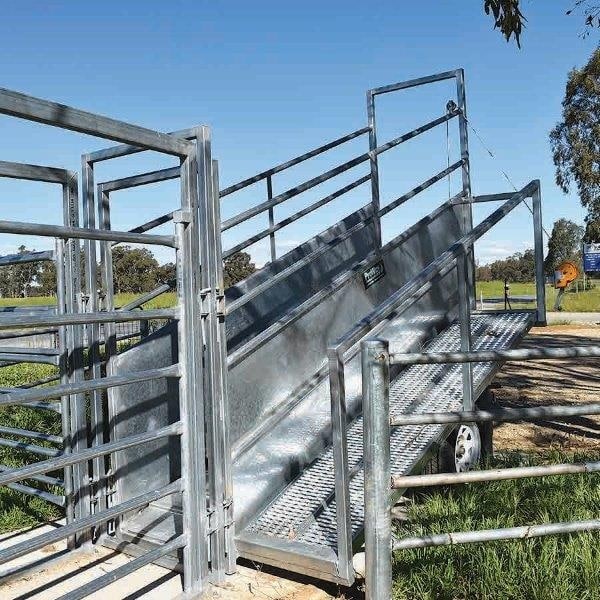

  • Eco Mobile Ramp

    • The eco mobile cattle ramp is an adjustable trailer to truck ramp and an effective solution for loading between trailers, utes and the first deck of stock crates.
    • Sheeted to a height of 1 metre, the galvanised construction prevents legs from getting through the ramp for cattle loading safety.
    • With wheels, leaf type suspension and a convenient swing aside pull, the ramp provides the added flexibility of mobility.
    • The ramp can be towed between multiple yards or properties or included on relocatable yard designs.
  • Eco Mobile Ramp

Permanent Cattle Loading Ramps

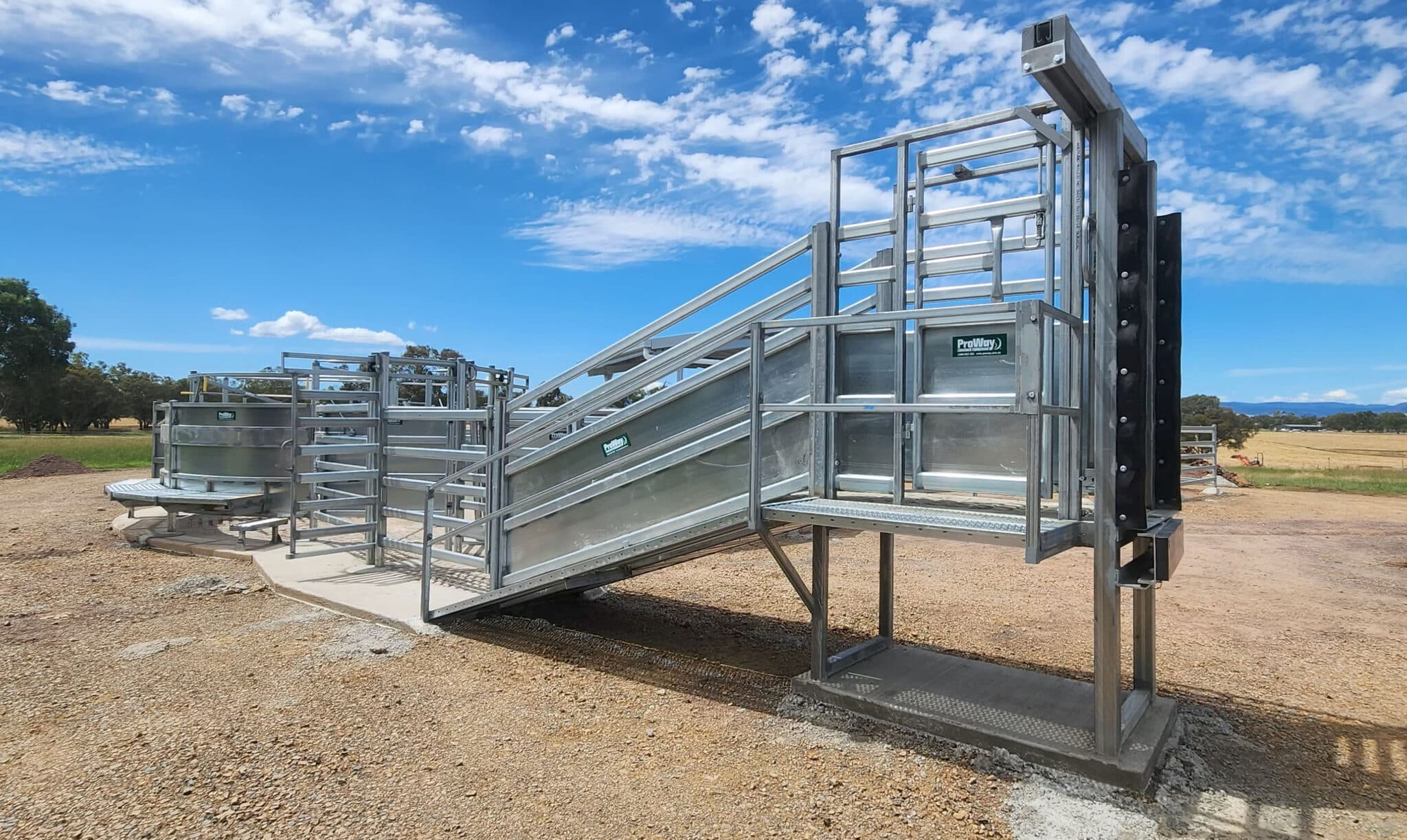

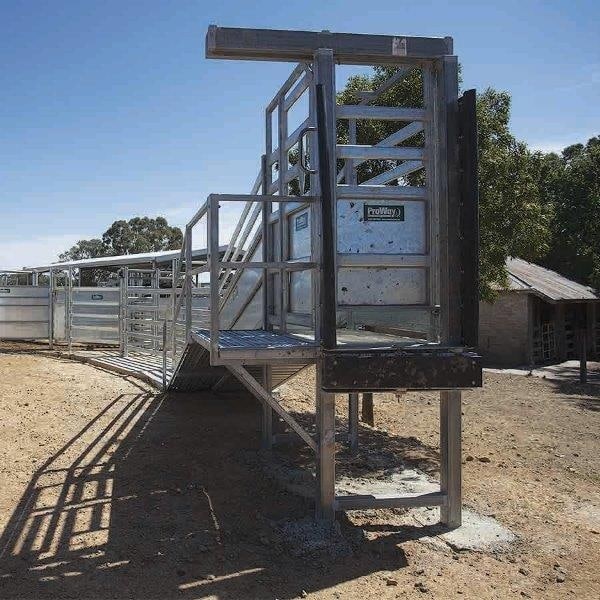

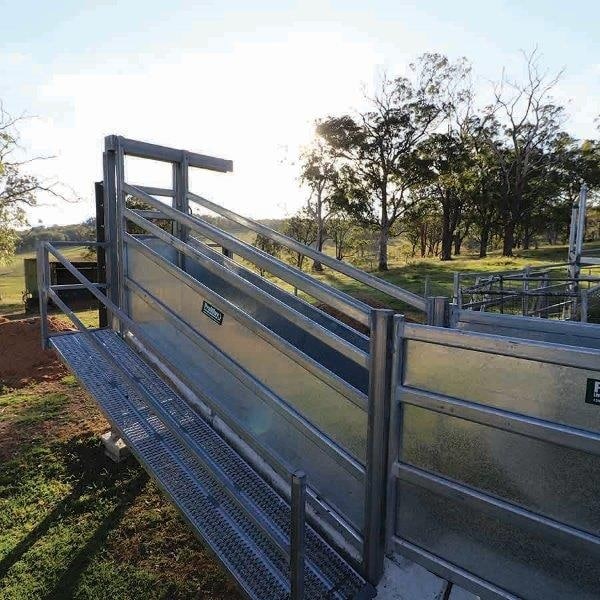

  • 19 Degree Loading Ramp

    • Rises over 3.3m (optional 1.6m level extension).
    • Sheeted cattle rail sides are included for stock safety as well as a walkway and handrails for operators safety.
    • A truckie access door and sliding gate at the truck end allows for the flow of cattle to be stopped when required with a swivel buffer board, eliminating the long gap between ramp and truck.
    • Designed for a stepped concrete floor to be poured on site (concrete not included).

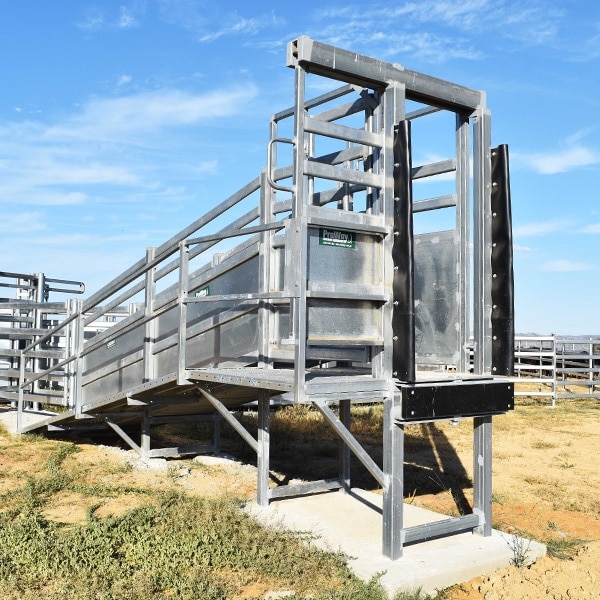

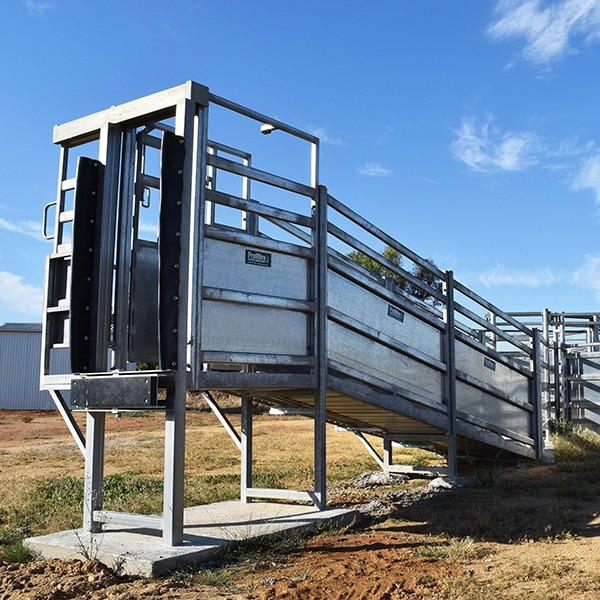

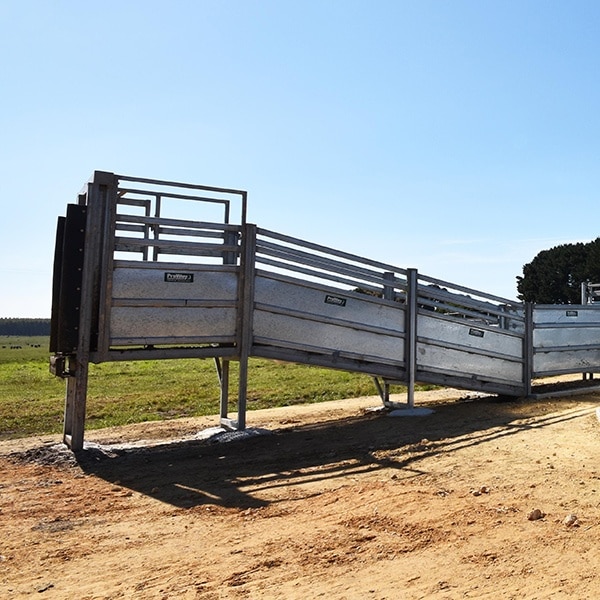

  • 12.5 Degree Rear Loading Ramp (with level extension)

    • Rises over 5.0m (plus 1.6m level extension).
    • Galvanised construction with non-slip walkway and handrail for operator safety.
    • Sheeted cattle rail sides are included for stock safety.
    • Access door and sliding gate at truck end.
    • Swivel buffer board eliminates gap between the ramp and truck.
    • Designed for a stepped concrete floor to be poured on site (concrete not included).

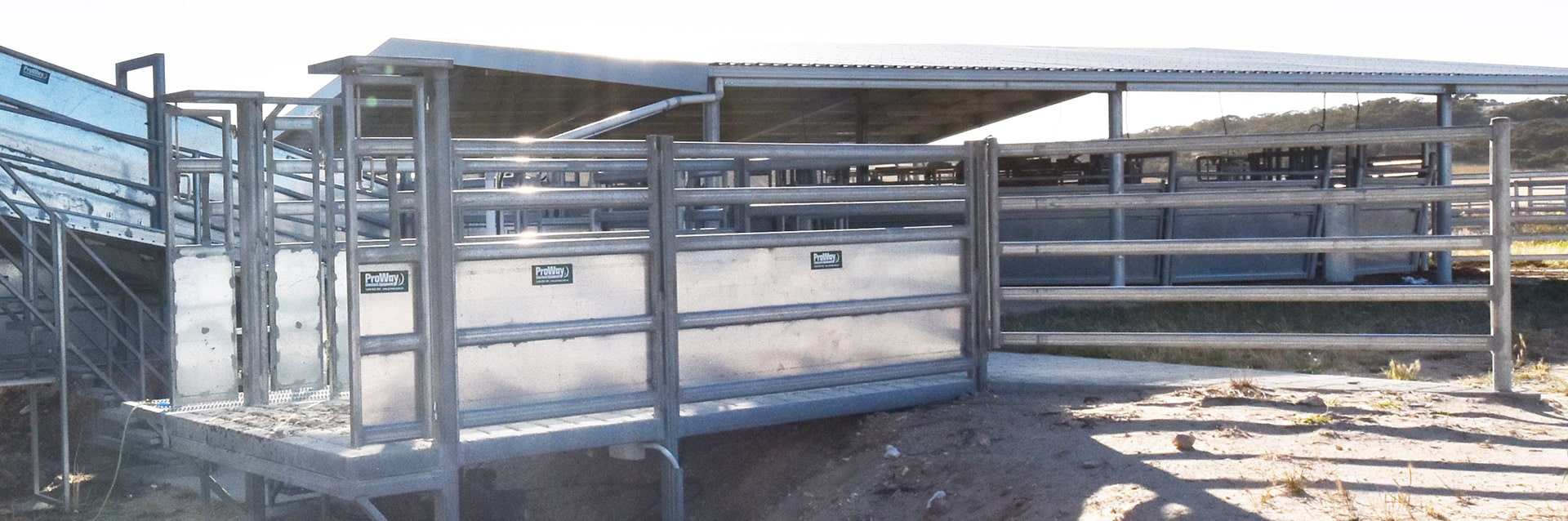

  • Rear Unloading Dump

    • Can be built to suit a 1m retaining wall or rise from ground level.
    • Ground level ramp rises over 5.0m (plus 2.4m level extension).
    • 1800mm wide dump for safe and efficient unloading of stock.
    • Ideal for frequent turnover of cattle such as trade or feedlot operations.
    • Stepped concrete floor that must be poured on site.
    • Non-slip stairs and safety walkway to both decks.

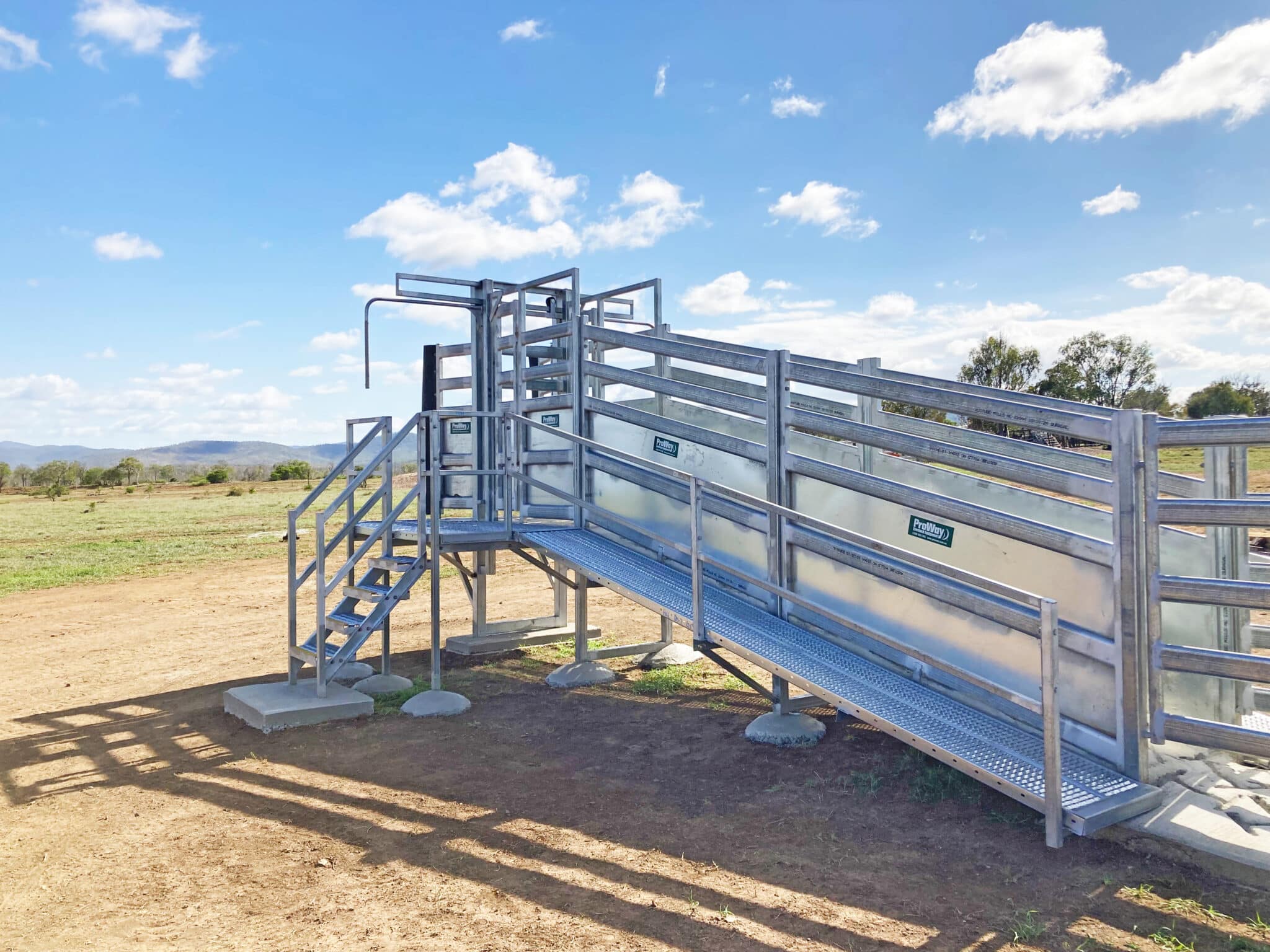

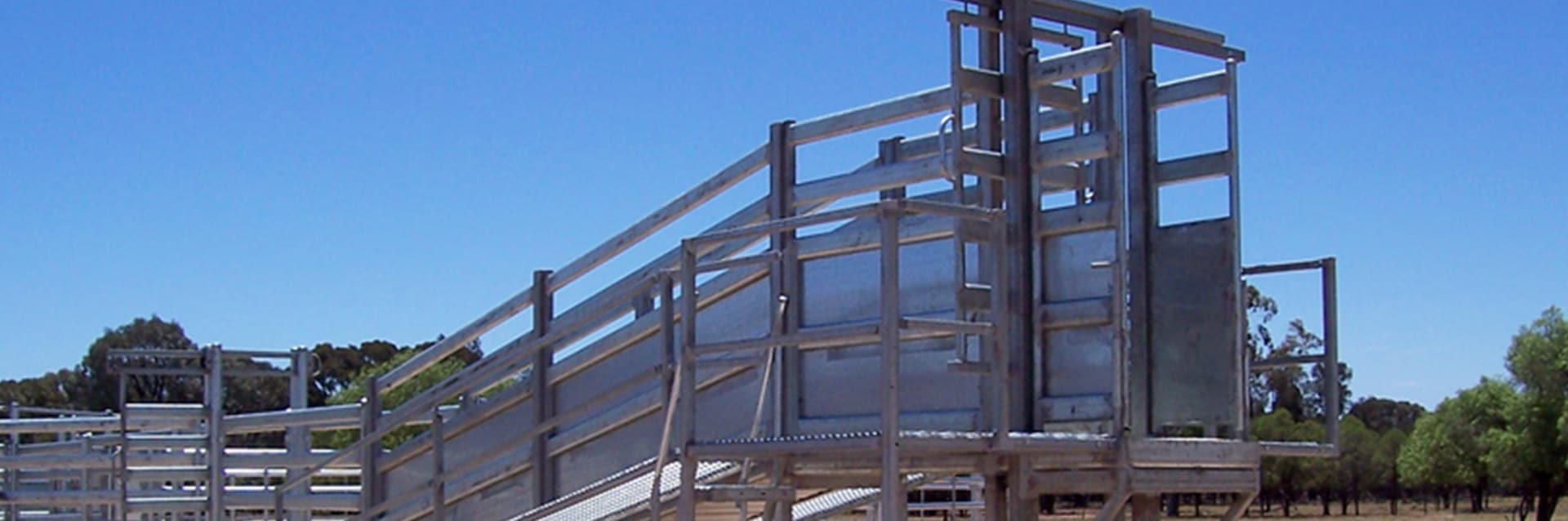

  • 12.5 Degree Side Loading Ramp (with level extension)

    • Rises over 5.0m (plus 2.4m level extension).
    • Bat wing doors are designed to lock in place and allow side load stock crate doors to chain against them. They are adjustable in width to suit varied side load door openings.
    • Galvanised construction with non-slip walkway and handrail on both sides for operator safety. Steps are located on the drivers side.
    • Sheeted cattle rail sides are included for stock safety.
    • Access door and sliding gate at truck end.
    • Swivel buffer board eliminates gap between the ramp and truck.
    • Designed for a stepped concrete floor, to be poured on site (concrete not included).

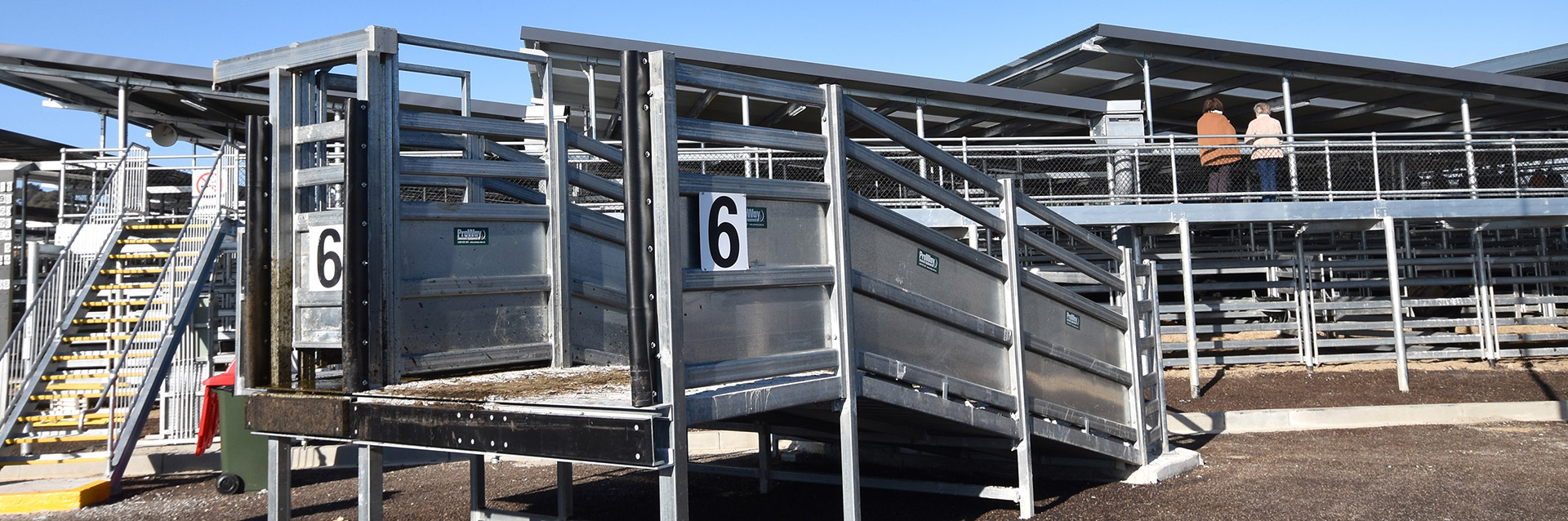

  • 12.5 Degree Combined Ramp and Dump

    • Designed as a single loading and unloading combination, ideal for high stock turnover or feedlot operations.
    • Includes 900mm wide ramps and 1800mmm wide unloading dump
    • Rises over 5.0m (plus 2.4m level extension).
    • Can be built as side or rear loading/unloading ramp
    • Side loading unit includes bat wing doors which lock in place and allow side load stock crate doors to chain against them. They are adjustable in width to suit varied side load door openings.
    • Steps and walkway on driver’s side
    • Designed to have concrete floor and steps
    • Galvanised sheeted sides
  • 19 Degree Loading Ramp
  • 12.5 Degree Rear Loading Ramp (with level extension)
  • Rear Unloading Dump
  • 12.5 Degree Side Loading Ramp (with level extension)
  • 12.5 Degree Combined Ramp and Dump

Commercial and Large Scale Cattle Loading Ramps

  • 19° Cattle Loading Ramp

    • Commercial grade cattle loading/unloading ramp designed for high throughput at saleyards, with heavy duty construction
    • Hand winch to raise and lower height, which adjusts from box trailers to the 1st deck of a truck
    • Walkway and handrail one side for safe operator access
    • Heavy Duty 150 PFC gantry with lock in safety bar
    • 1m sheeted ramp sides, and 925mm width encourages stock flow, suitable for loading and unloading
    • Drop over flap – eliminates gap between truck/trailer and ramp
    • All galvanised construction with galvanised pressed steel floor

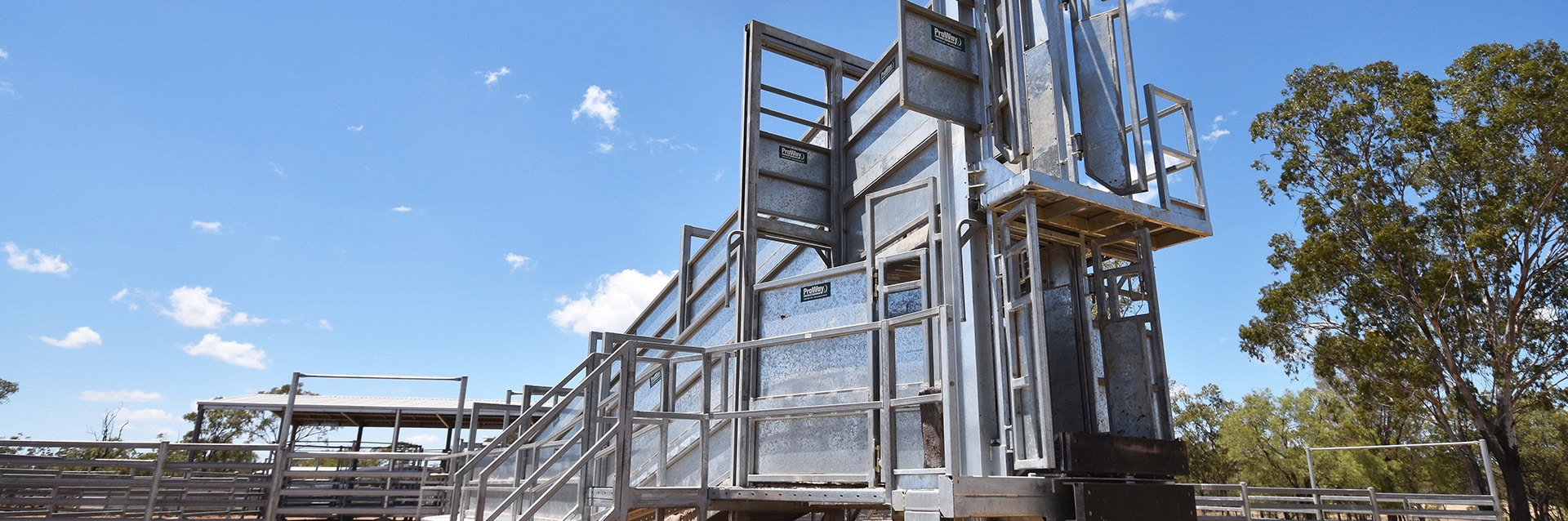

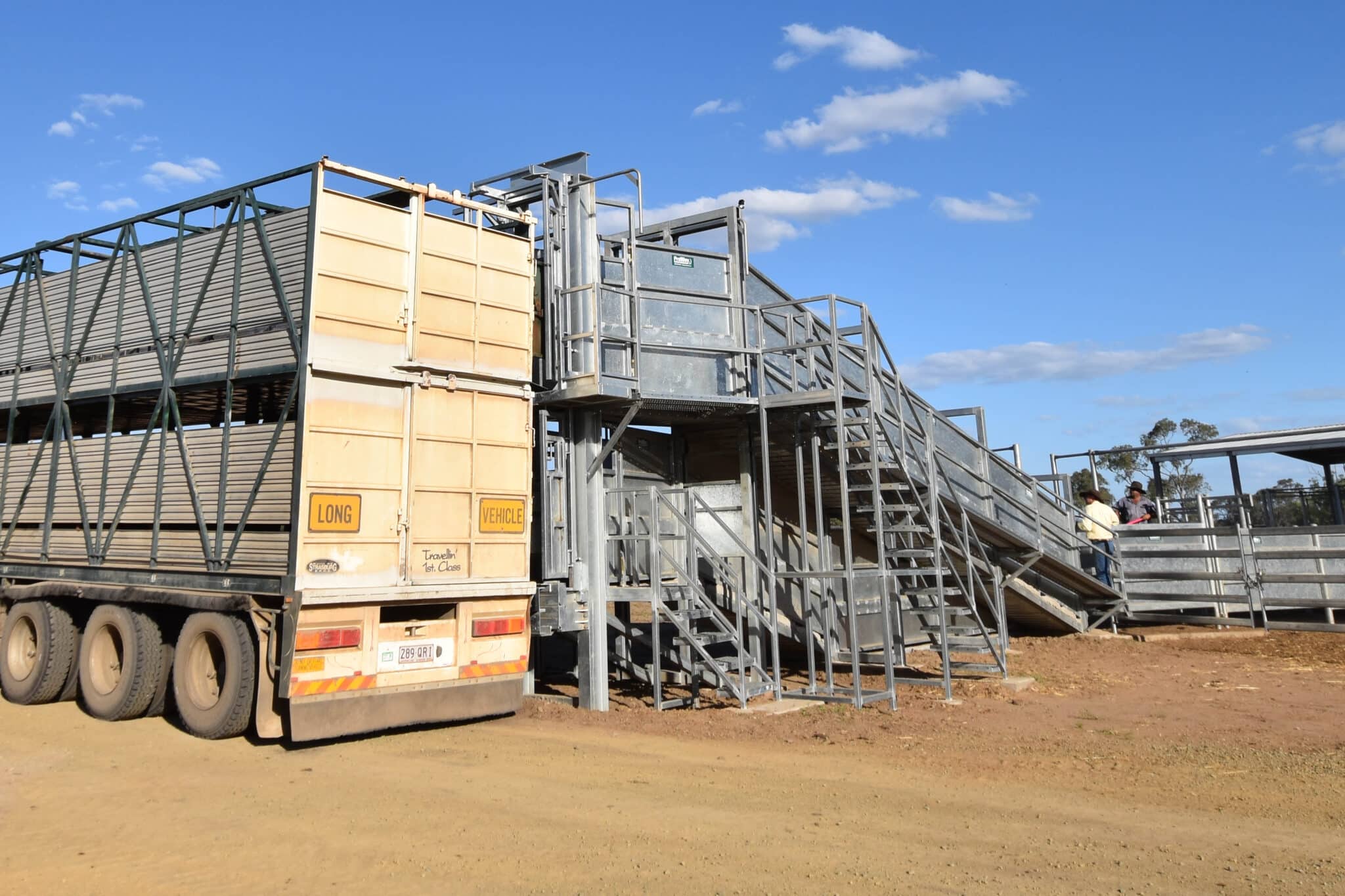

  • Adjustable Under and Over Loading Ramp

    • Utilises an internal floor that can move from the bottom to the top deck height with a heavy-duty hand winch.
    • Flexibility of dual deck loading, with the economy of single walkway.
    • Walkways on both decks are Australian Standards compliant.
    • Cattle rise to top deck height over 10 metres giving good stock flow with all classes of cattle.
    • First grade steel construction.
    • Suitable for rear or side loading.
    • Bat wing doors for side loading and sliding gate at truck end for both decks.

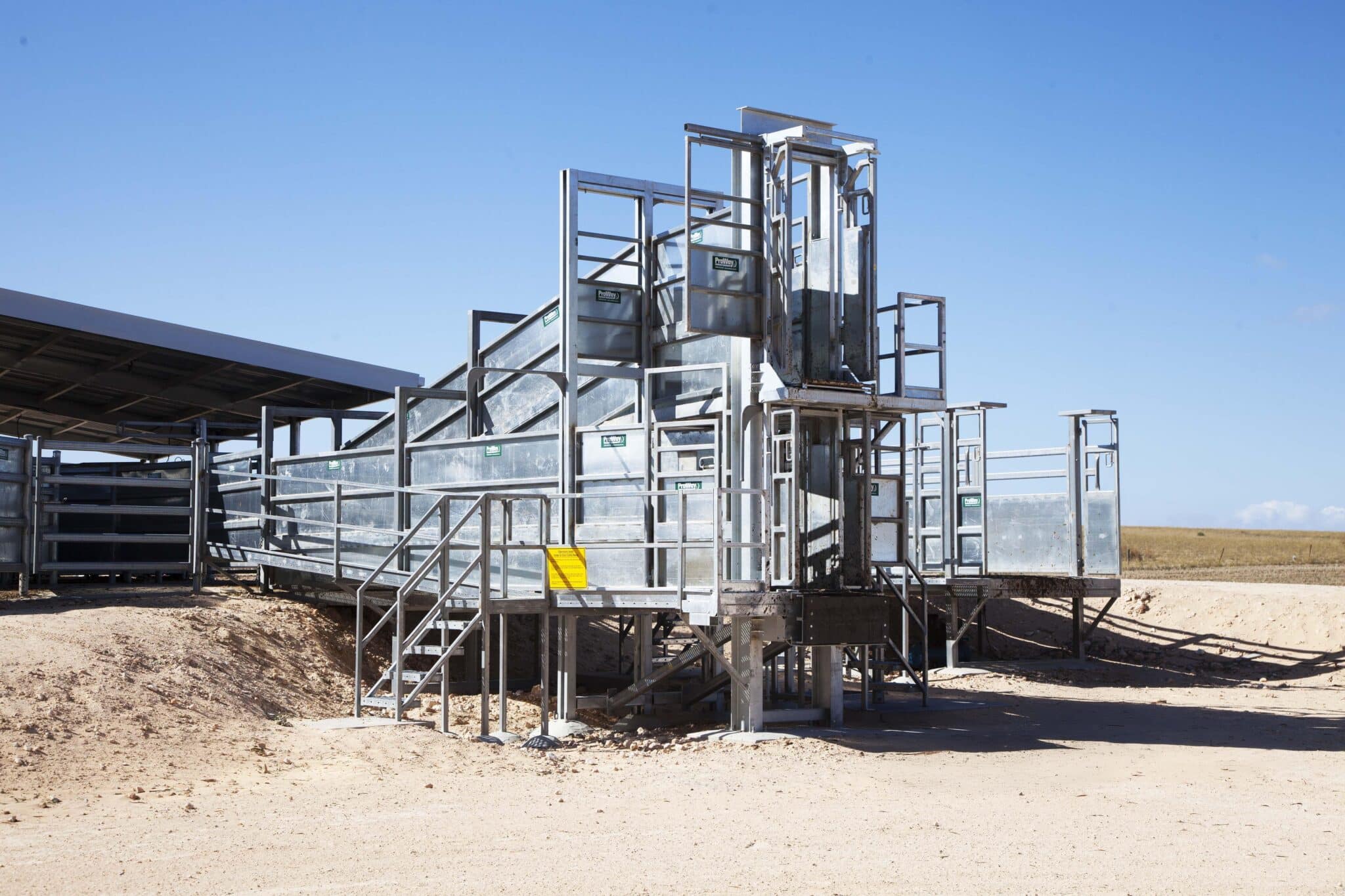

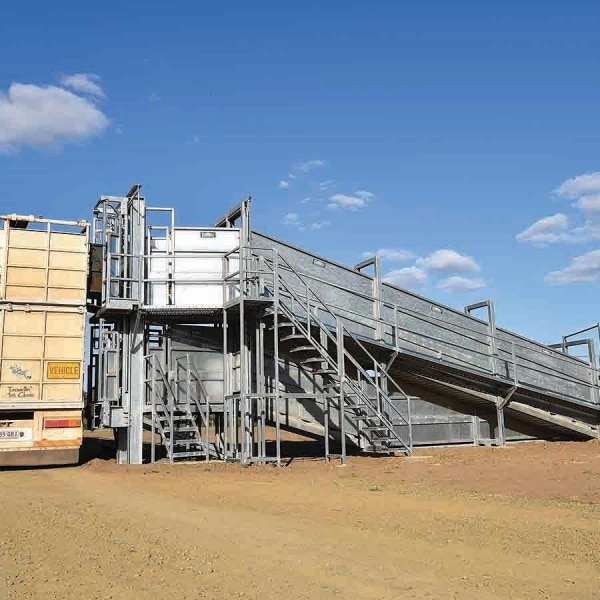

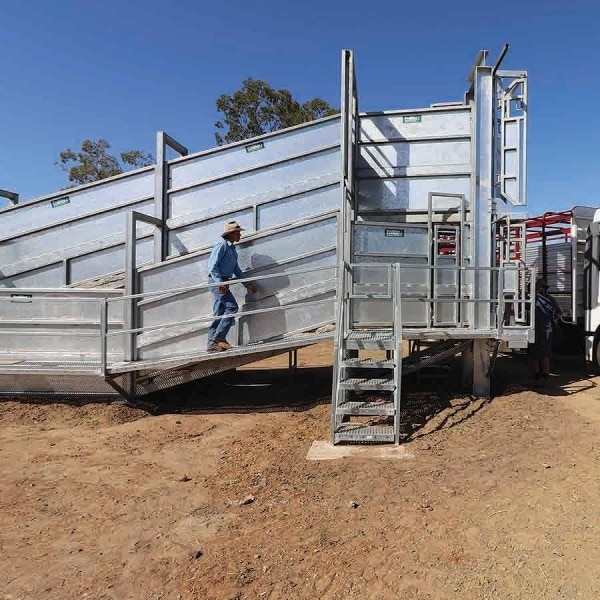

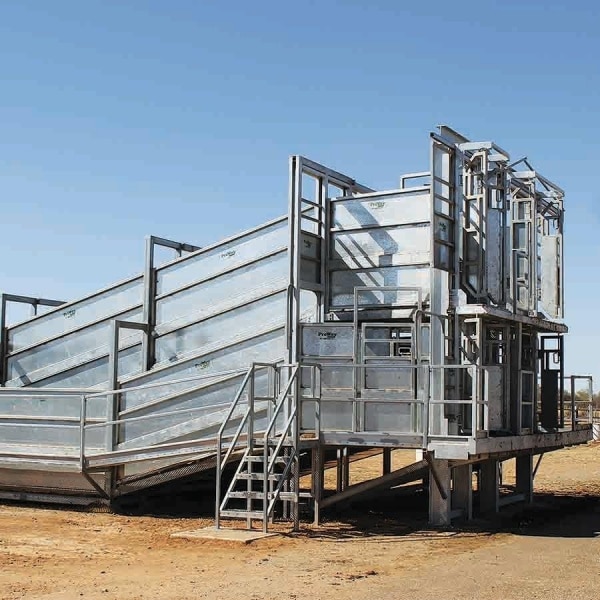

  • Under and Over Rear Loading Ramp

    • Heavy duty, galvanised frame with level extension for better cattle flow.
    • Built for large scale operations and high throughput loading
    • Can be built to suit a 1m retaining wall or rise from ground level.
    • Stepped concrete floor that must be poured on site.
    • Non-slip stairs and safety walkway to both decks.
    • Sliding gates at the truck end and a truckies access door closes across the ramp to prevent operator injury.

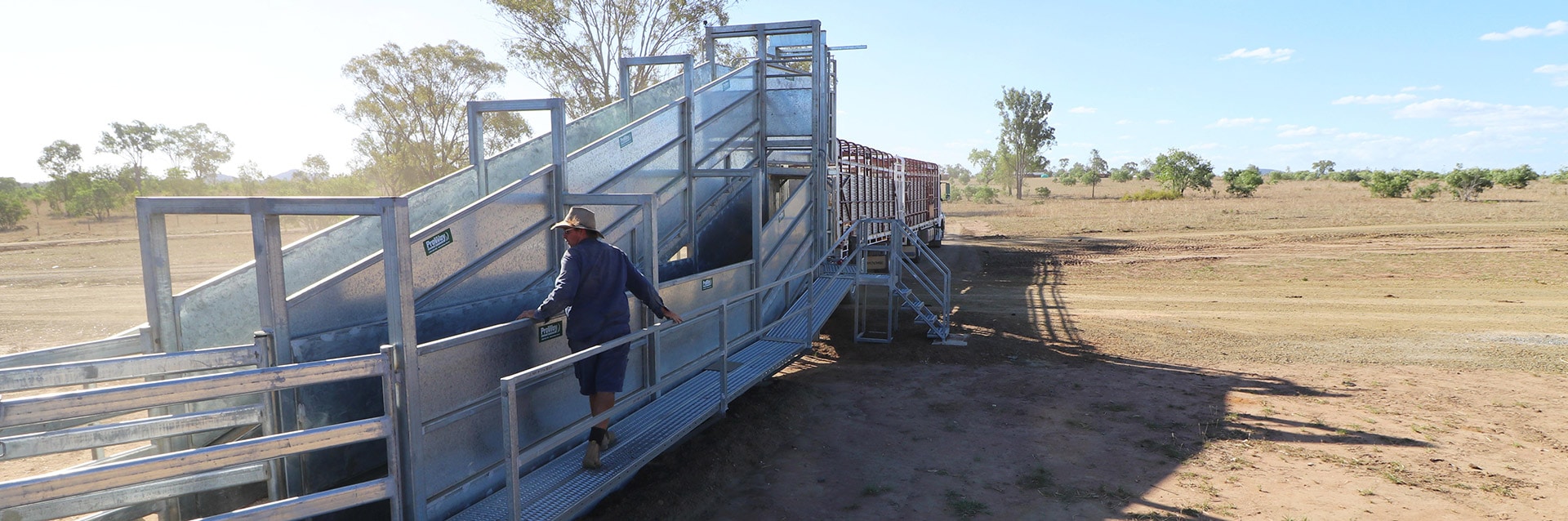

  • Under and Over Side Loading Ramp

    • Side loading compatible with a self-aligning swivel buffer, bat wing doors and a drop over truck bridge. They are adjustable in width to suit varied side load door openings.
    • Heavy duty, galvanised frame with level extension for better cattle flow.
    • Built for large scale operations and high throughput loading
    • Stepped concrete floor that must be poured on site.
    • Non-slip stairs and safety walkway to both decks.
    • Sliding gates at the truck end and a truckies access door closes across the ramp to prevent operator injury.

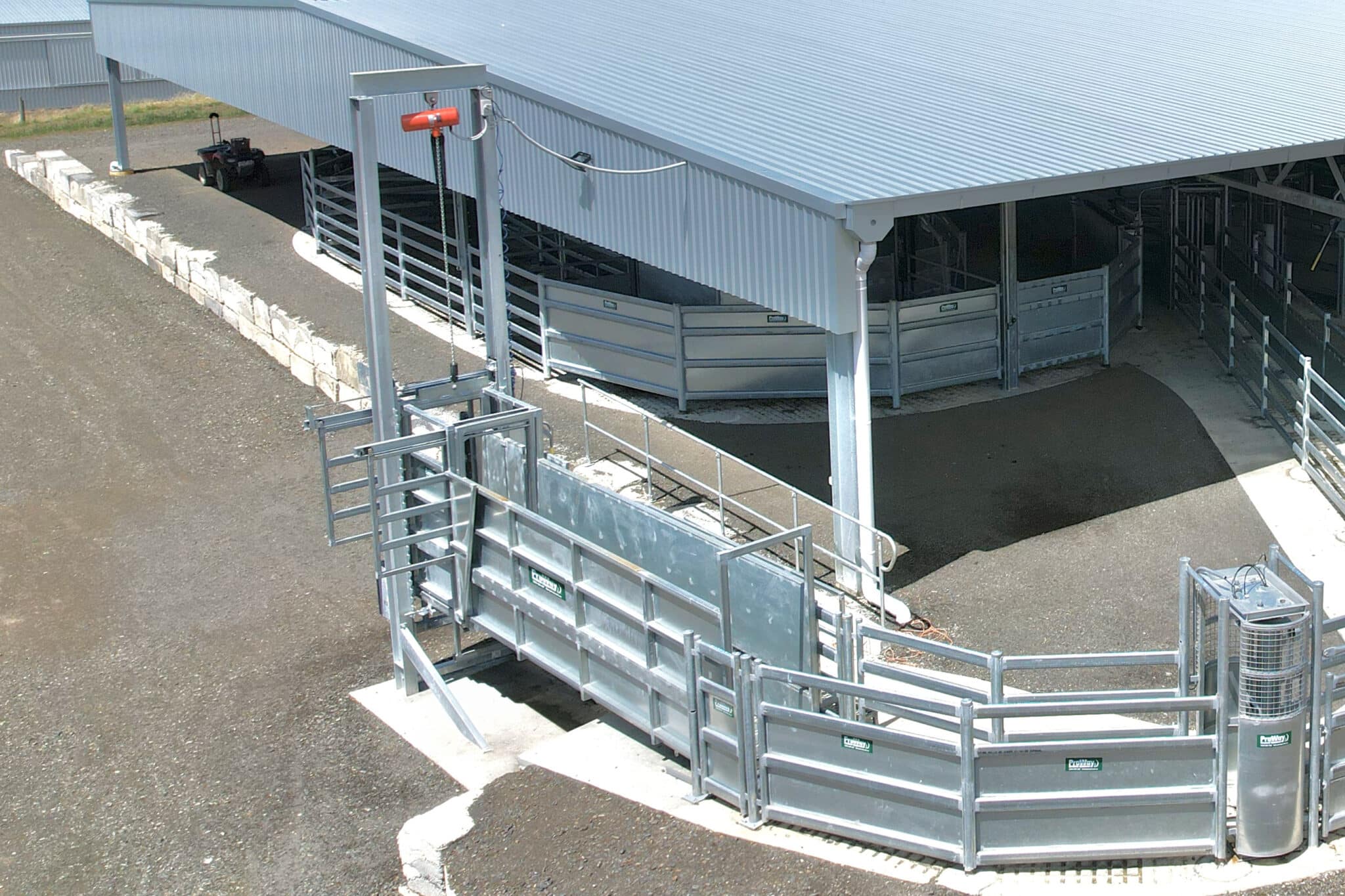

  • 8m Adjustable Cattle Loading Ramp

    • Designed in conjunction with major trucking companies to maximise stock flow and operator safety following Australian WH & S guidelines.
    • Electric hoist to lift safely and efficiently between decks
    • Engineer certified heavy duty construction.
    • Walkway and stairs with access gate at truck end.
    • Fully sheeted 1.7m sides with viewing slot.
    • Pressed checker plate hot dipped flooring.
    • Non slip expanded mesh walkway (600mm wide) with hand rail, mid rail and toe board-meets Australian Standards.

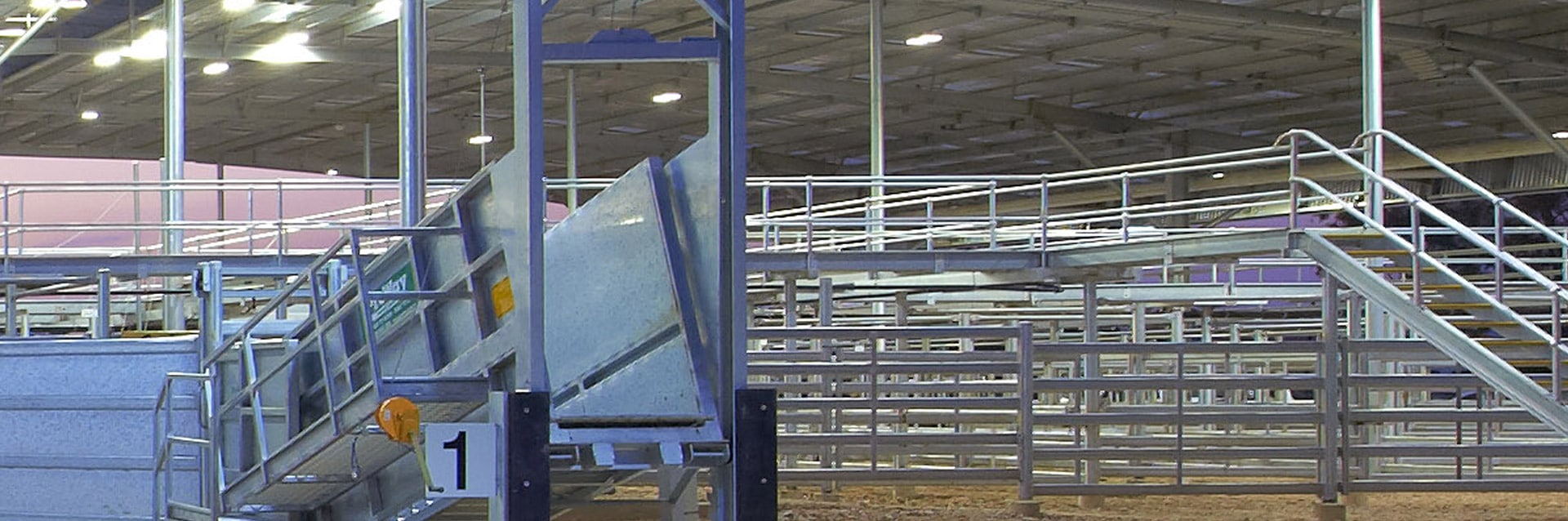

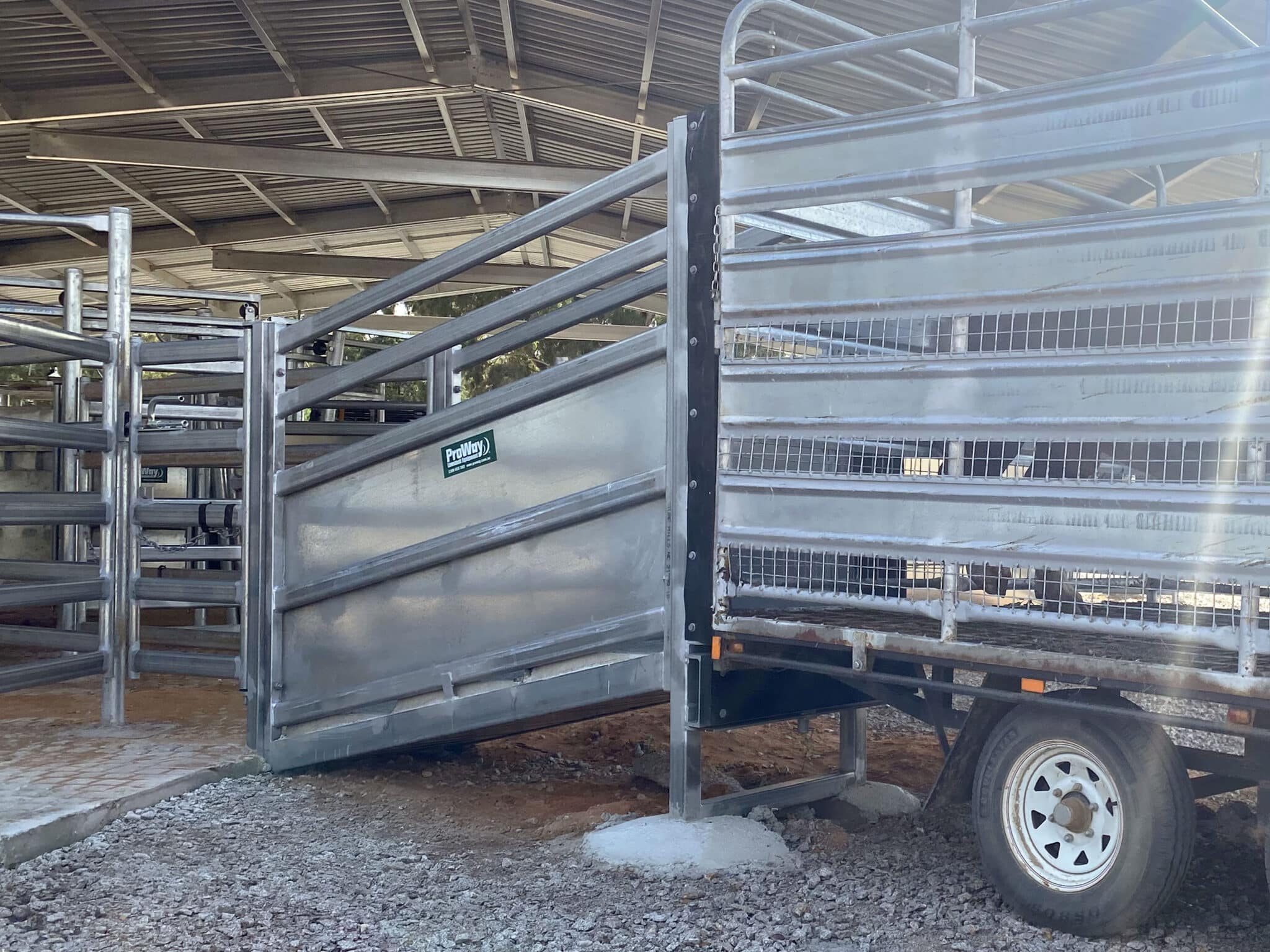

  • 3.3m Trailer Unloading Ramp
  • Adjustable Under and Over Loading Ramp
  • Under and Over Rear Loading Ramp
  • Under and Over Side Loading Ramp
  • 8m Adjustable Cattle Loading Ramp
