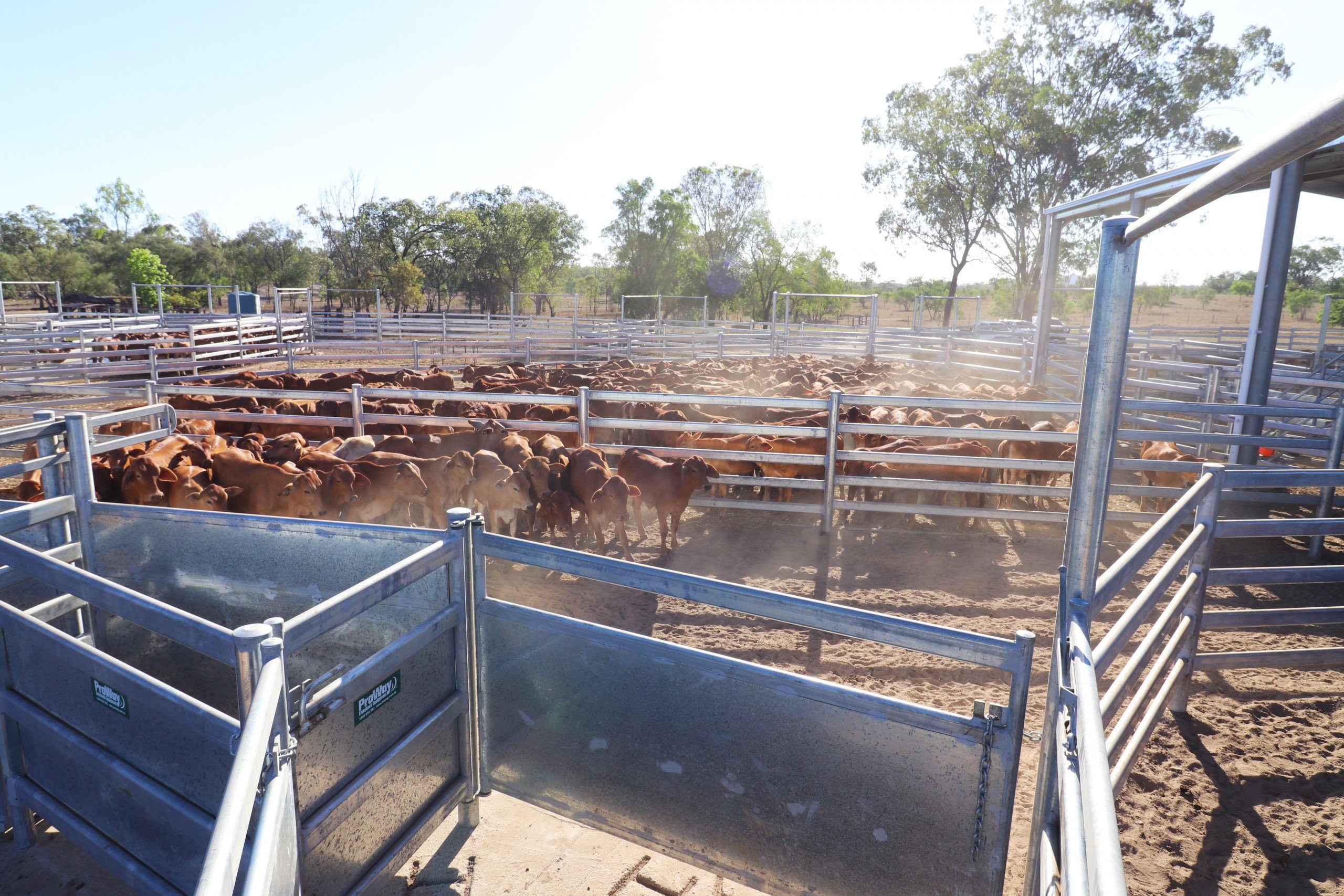

Cattle Yard Sample Designs

ProWay products are proudly designed and manufactured in Australia, and installed all over the world.

20 years of quality design and manufacturing experience

All livestock enterprises have unique requirements, because of this the best stockyard design is the one that is tailored to suit your operation.

ProWay don’t sell yards straight out of a catalogue. We use our range of standard designs as a benchmark for working capacity which are then fine-tuned to meet the individual needs of our clients. In many cases we design from scratch, drawing on our extensive design library to create a facility specific to your needs.

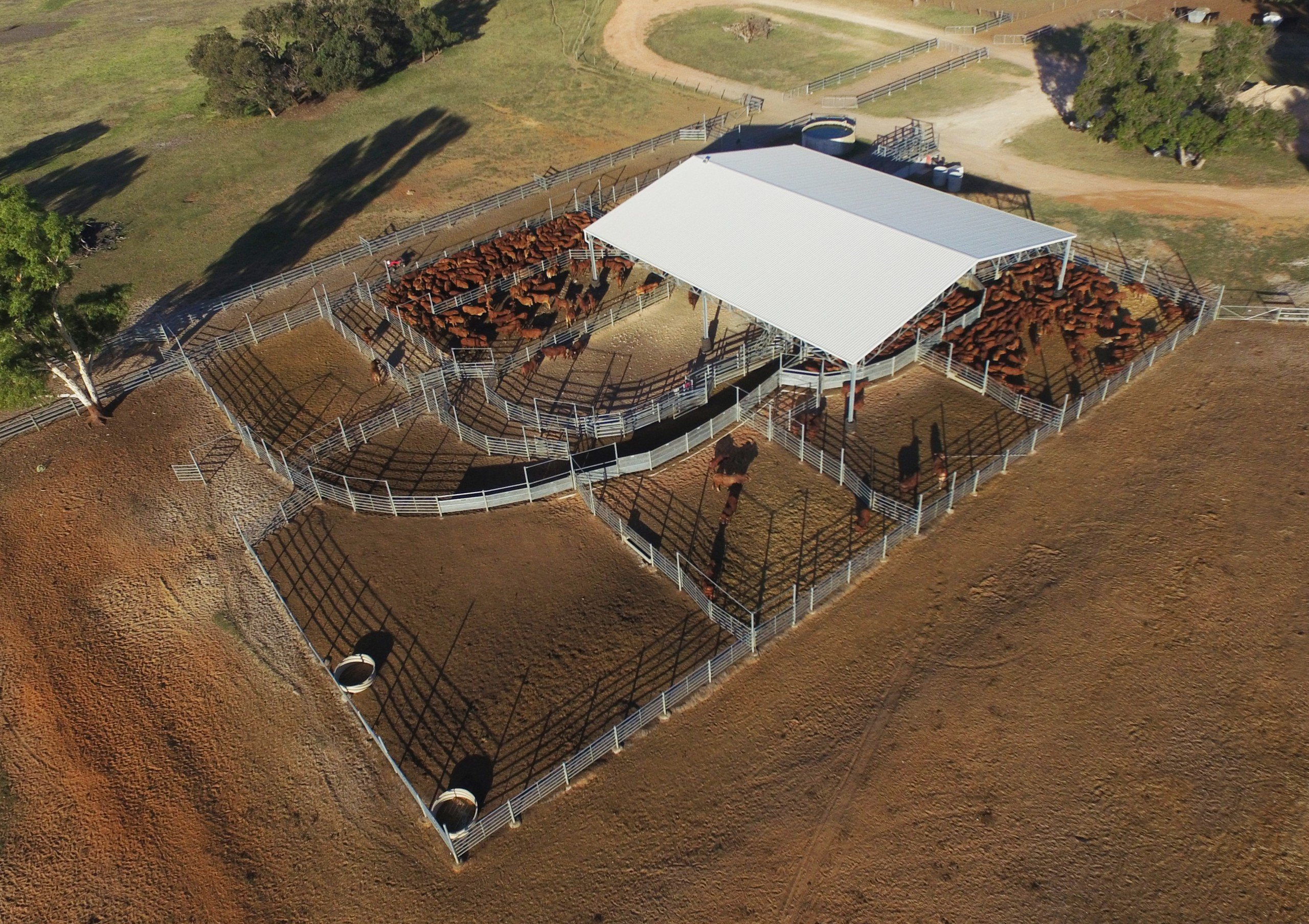

Cattle Yard Sample Design

Proway yards are built to last generations, that’s why the design is so important

Details such as operator and vehicle access, where gates swing from, gate length, yard orientation, corners in yards and pen size, all influence stock flow.

All ProWay facilities are drawn in CAD software to ensure measurements are accurate and fit as designed come construction.

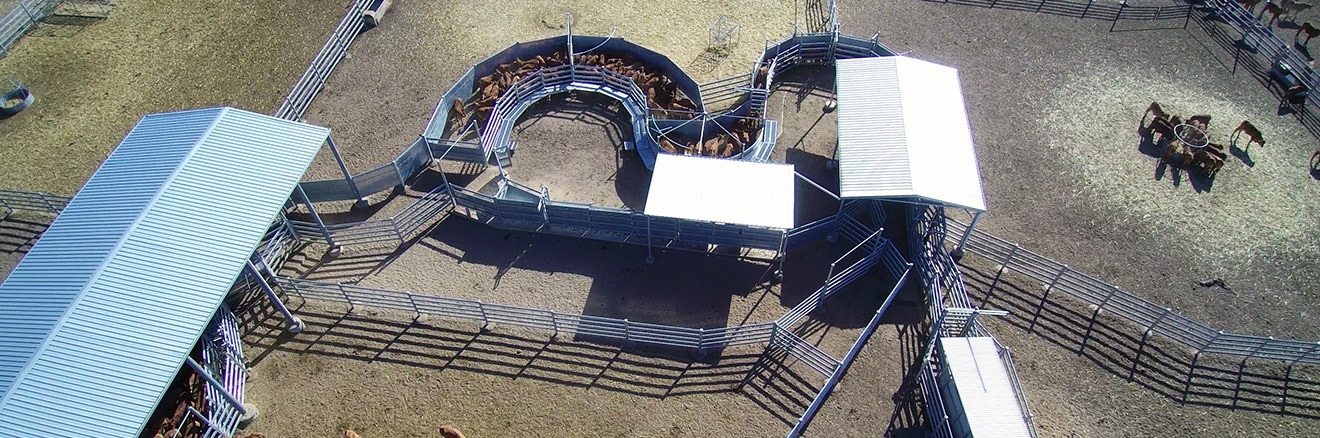

Cattle Yard Sample Design

ProWay’s Design Advantage

ProWay measure your site with survey and satellite data to record relevant existing fence lines, elevation, roof structures, trees and other infrastructure or services which can be factored into your new facility. This provides a significant advantage and cost saving as in many cases, existing holding yards or structures can be utilised in the new build.

For green field sites we work with you to ensure site selection will best suit your property including best access for stock, operators and trucks.

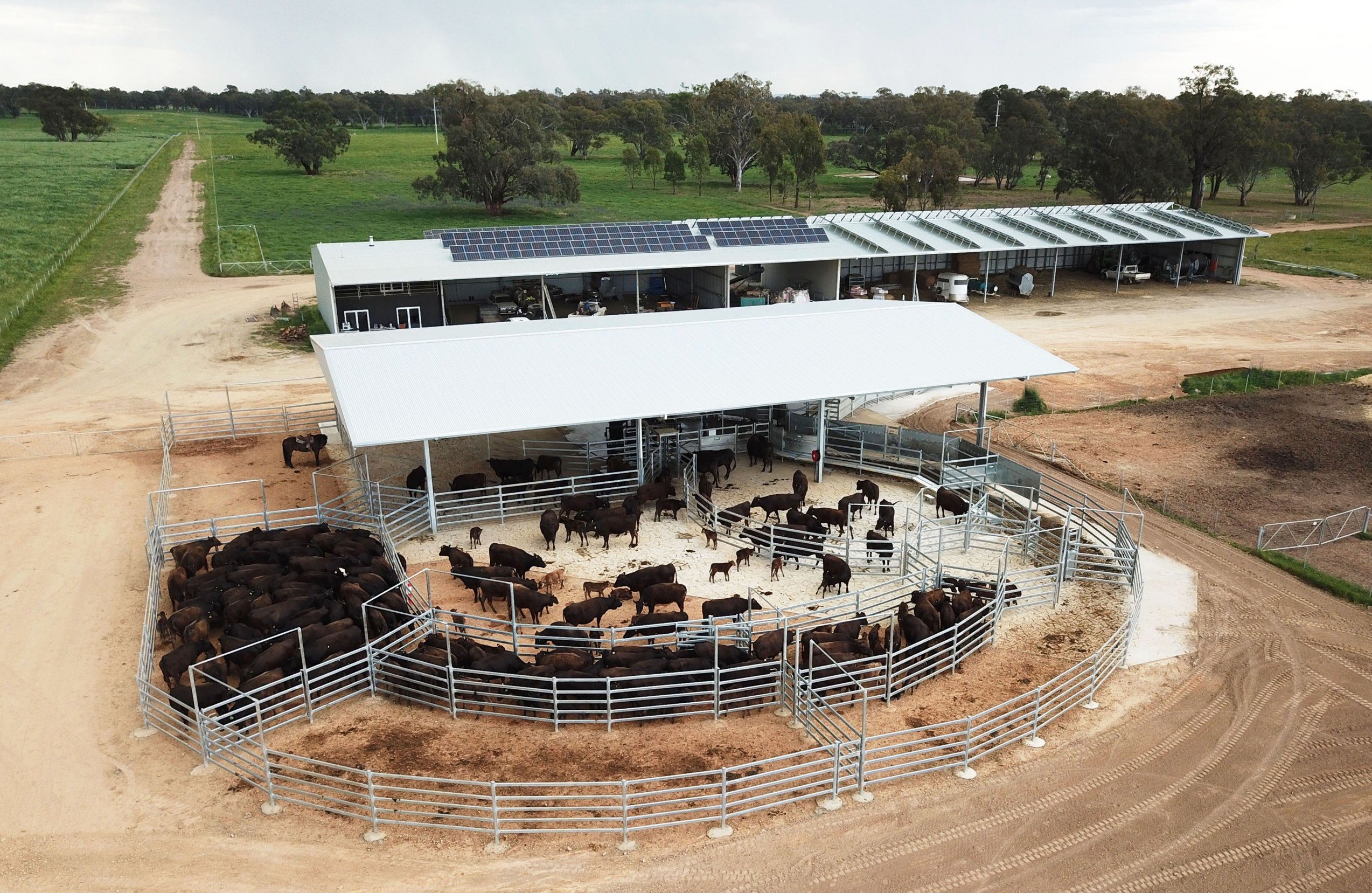

Cattle Yard Sample Design

On top of your design, we provide site preparation guides which can include recommended new fence lines, laneways and earthworks, as well as turning circles for semi and b-double trailers so you can be sure everything fits.

Below are a selection of our standard designs for varied working capacities

PCY 260
PCY 260 Specification

ENTIRE YARD SIZE: 570 SQM

FILLED COMPLEX HOLDS: 260 head

PRE-DRAFT HOLDING: 135 head

POST-DRAFT HOLDING: 100 head

(based on 2 SQM per animal)

WORKING RACE LENGTH: 8.4m

Key Features Include:

  • Working Race:
    • ¾ sheeted on inside
    • Fully sheeted outside
  • Rotary force with ratchet brake
  • Sliding gates
  • 3-Way draft gates
  • Manways at key access points
  • Optional loading ramp
  • Customised to suit your operation
PCY 360
PCY 360 Specification

ENTIRE YARD SIZE: 845 SQM

FILLED COMPLEX HOLDS: 360 head

PRE-DRAFT HOLDING: 225 head

POST-DRAFT HOLDING: 135 head

(based on 2 SQM per animal)

WORKING RACE LENGTH: 14.7m

Key Features Include:

  • Working Race:
    • ¾ sheeted on inside
    • Fully sheeted outside
  • Rotary force with ratchet brake
  • Sliding gates
  • Pound yard braced overhead
  • 3-Way draft module
  • Manways at key access points
  • Sheeted calf race
  • Optional loading ramp
  • Customised to suit your operation
PCY 390
PCY 390 Specification

ENTIRE YARD SIZE: 933 SQM

FILLED COMPLEX HOLDS: 390 head

PRE-DRAFT HOLDING: 250 head

POST-DRAFT HOLDING: 140 head

(based on 2 SQM per animal)

WORKING RACE LENGTH: 13.0m

Key Features Include:

  • Working Race:
    • ¾ sheeted on inside
    • Fully sheeted outside
  • Rotary force with ratchet brake
  • Pound yard braced overhead
  • 3-Way draft module
  • Manways at key access points
  • Sheeted calf race
  • Optional loading ramp
  • Customised to suit your operation
PCY 500
PCY 500 Specification

ENTIRE YARD SIZE: 1,200 SQM

FILLED COMPLEX HOLDS: 500 head

PRE-DRAFT HOLDING: 260 head

POST-DRAFT HOLDING: 240 head

(based on 2 SQM per animal)

WORKING RACE LENGTH: 13.4m

Key Features Include:

  • Working Race:
    • ¾ sheeted on inside
    • Fully sheeted outside
  • Rotary force with ratchet brake
  • Pound yard braced overhead
  • 3-Way draft module
  • Manways at key access points
  • Sheeted calf race
  • Optional loading ramp
  • Customised to suit your operation
PCY 660
PCY 660 Specification

ENTIRE YARD SIZE: 1,540 SQM

FILLED COMPLEX HOLDS: 660 head

PRE-DRAFT HOLDING: 325 head

POST-DRAFT HOLDING: 335 head

(based on 2 SQM per animal)

WORKING RACE LENGTH: 17.1m

Key Features Include:

  • Working Race:
    • ¾ sheeted on inside
    • Fully sheeted outside
  • Rotary force with ratchet brake
  • Pound yard braced overhead
  • 5-Way draft module
  • 3 x diamond yards for flexibility
  • Manways at key access points
  • Optional loading ramp
  • Customised to suit your operation
PCY 1175
PCY 1175 Specification

ENTIRE YARD SIZE: 2,600 SQM

FILLED COMPLEX HOLDS: 1,175 head

PRE-DRAFT HOLDING: 670 head

POST-DRAFT HOLDING: 505 head

(based on 2 SQM per animal)

WORKING RACE LENGTH: 19.3m

Key Features Include:

  • Working Race:
    • ¾ sheeted on inside
    • Fully sheeted outside
  • Rotary force with ratchet brake
  • 3-Way draft module
  • Pound yard braced overhead
  • 4 x diamond yards for flexibility
  • Manways at key access points
  • Optional loading ramp
  • Customised to suit your operation

Looking for more Cattle Yard Designs?

Get in touch and let us know your specific handling requirements and/or working capacity and we’ll send you a cattle yard design pack.

Enquire Now

Request a Design Consultation or further information
