SHEEP LOADING RAMPS

ProWay products are proudly designed and manufactured in
Australia, and installed all over the world.

IMPROVE SHEEP FLOW AND LOADING EFFICIENCY

Livestock carriers regard ProWay’s vast range of sheep Loading Ramps as the best in the industry for safety and sheep flow.

ProWay have been engaged by organisations all over Australia to design, manufacture and install loading and unloading ramps on farms, feedlots, large scale abattoirs and commercial saleyards.

Developed over years of research and client feedback our Loading Ramps are designed with flexibility and safety in mind.

This focus has led to a vast product range and second to none customisation capabilities. This also ensures your requirements are met and your ramp safely suits a variety of applications i.e. multi-species.

ProWay has also worked with The Livestock Transport Association of Victoria (LTAV) to develop an approved loading ramp design guide to suit any operation.



ProWay ramps are proudly designed & made in Wagga Wagga NSW in accordance with Australian standards.

PROWAY BUILDS OVER 200 UNIQUE LOADING RAMPS A YEAR

We appreciate that your loading process is entirely unique.

ProWay will design a Loading Ramp to suit your requirements, factoring in:

  • Livestock breed and species
  • Access walkways
  • Deck heights
  • Retaining walls
  • Existing infrastructure
  • 12 Volt or manual winches

ALTRA RAMP GUIDE

ALTRA RAMP GUIDE

Mobile Sheep Loading Ramps

Permanent Sheep Loading Ramps

Commercial Sheep Loading Ramps

MOBILE SHEEP LOADING RAMPS

Permanent infrastructure at multiple sites isn’t always the ideal solution for loading stock. ProWay has a vast range of mobile solutions for varying sheep enterprises and requirements.

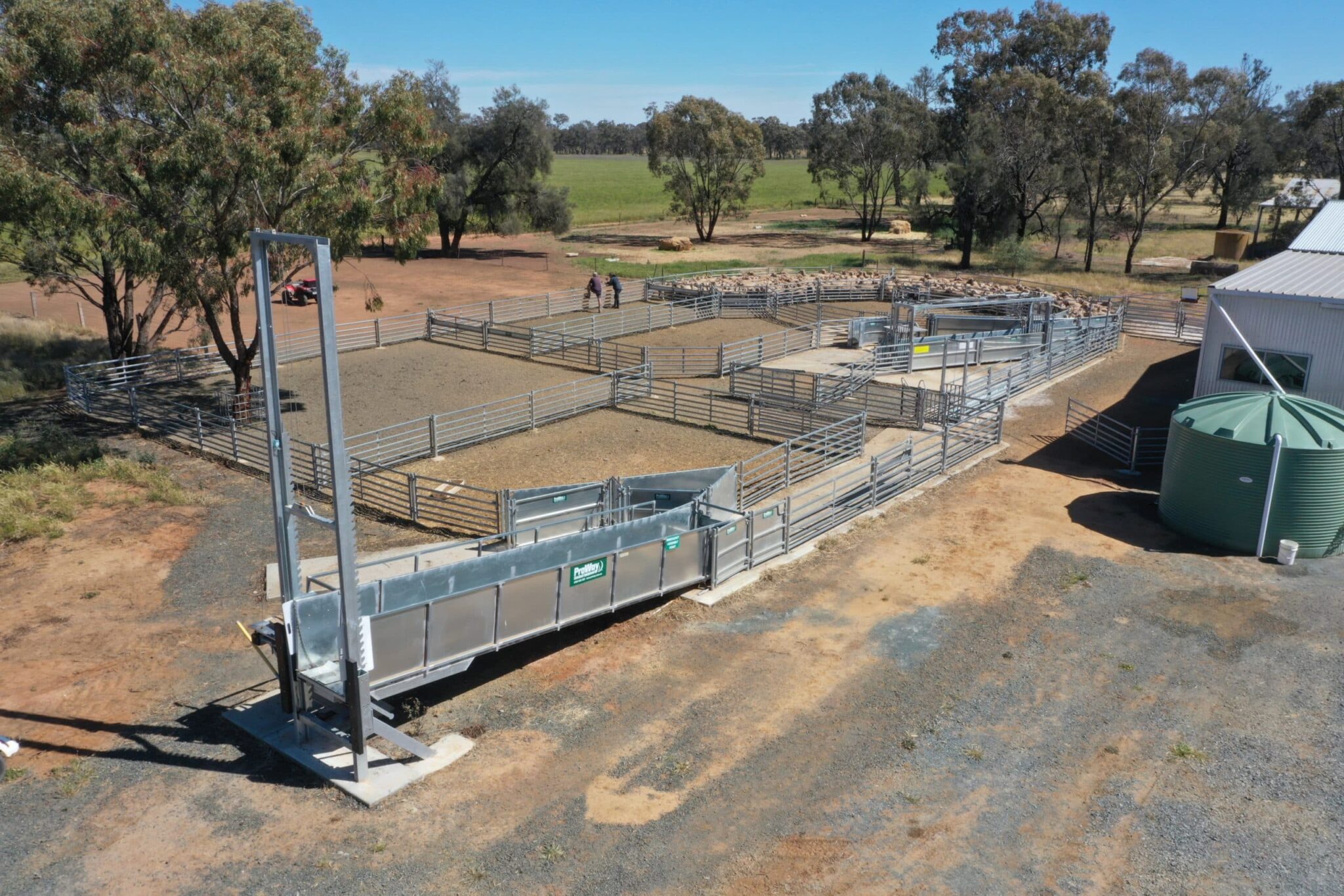

PERMANENT SHEEP LOADING RAMPS

ProWay’s Permanent Loading Ramps are renowned for their strength, reliability and longevity. ProWay’s permanent solutions cater to sheep enterprises of all sizes and requirements

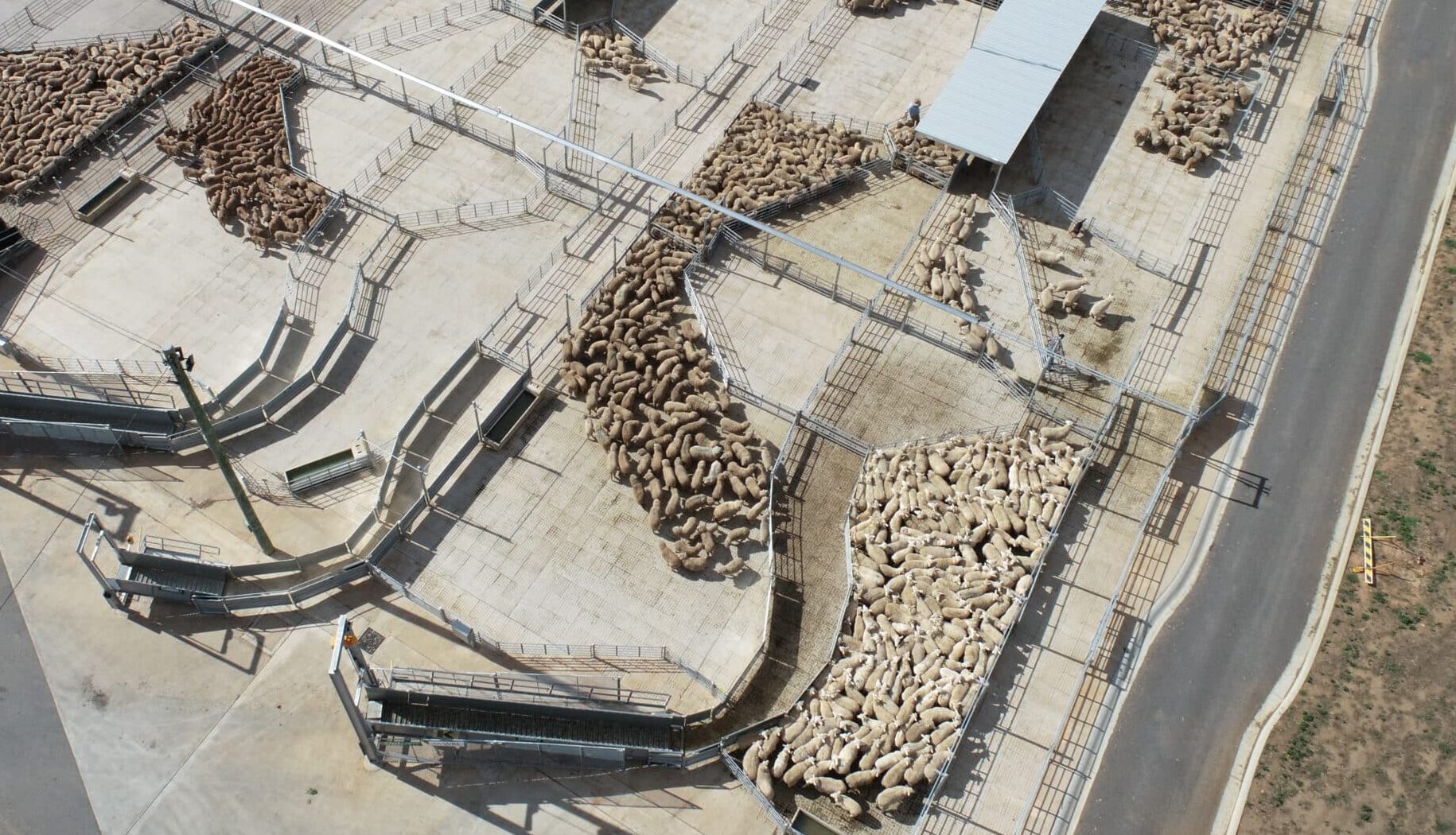

COMMERCIAL SHEEP LOADING RAMPS

ProWay’s reputation for commercial livestock loading and unloading is unsurpassed, due to the design and build quality at high volume supply chain operations. ProWay’s commercial loading and unloading ramps cater to varied truck and trailer types and a full range of our capabilities can obtained by contacting our head office.

LOOKING FOR MORE INFORMATION?

Talk to us and discover why ProWay Livestock Equipment is the choice of livestock professionals

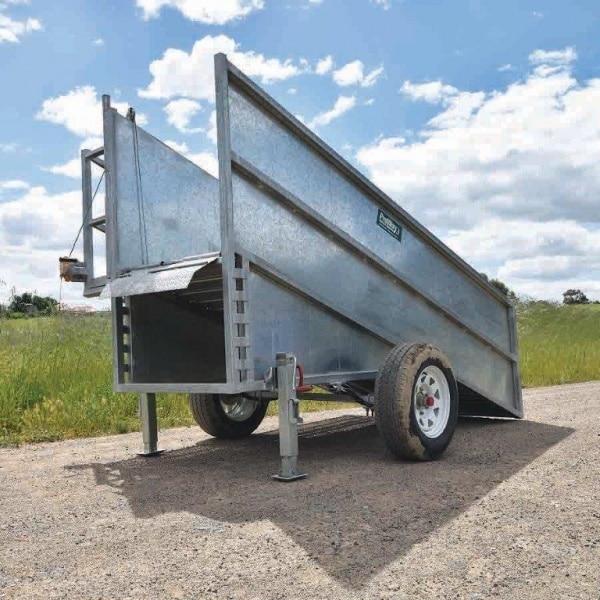

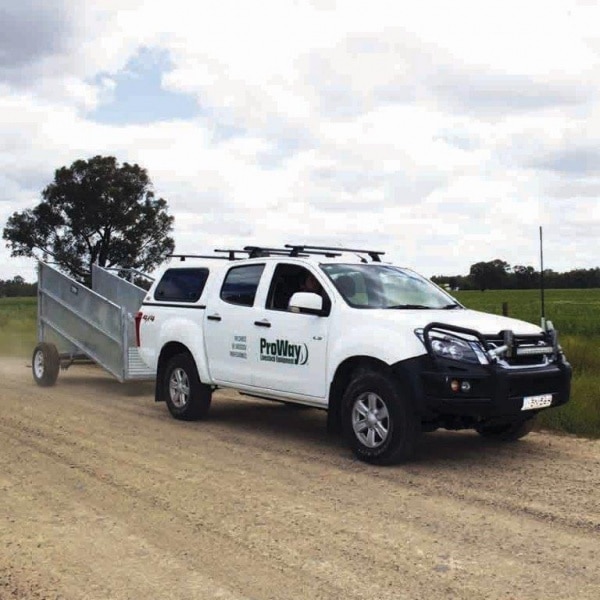

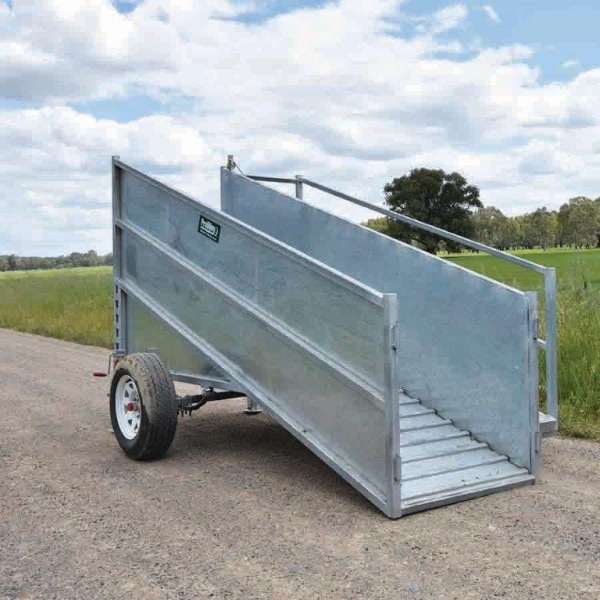

3.3M MOBILE ADJUSTABLE FLOOR LOADING RAMP

  • Adjusts from trailer to first deck height with a loading flap
  • Fully galvanised construction with sheeted 1m sides, loading width at 915mm inside race
  • Pressed galvanised sheep flooring
  • Sprung axle for safe towing with a removable pull when in use
  • Optional extras include: hand winch and/or walkway with handrail

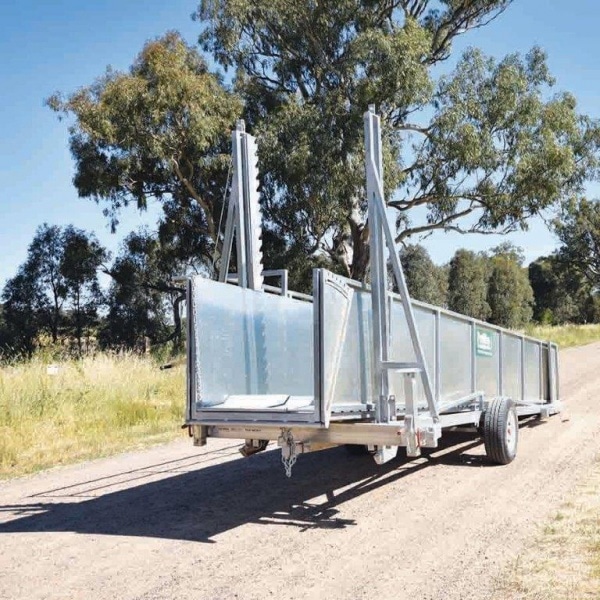

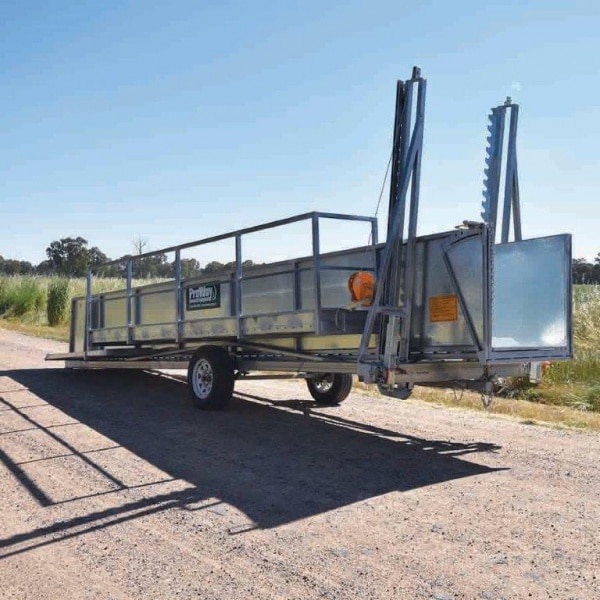

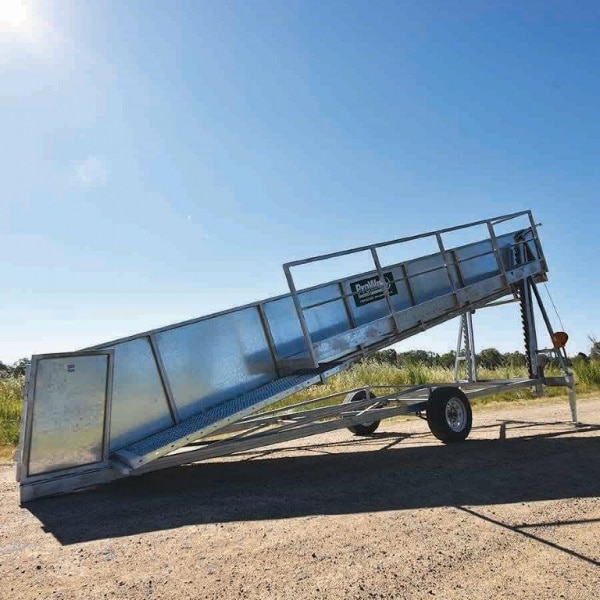

8.0M MOBILE ADJUSTABLE LOADING RAMP

  • This fully mobile ramp adjusts from ute height to the 3rd deck of a truck
  • Comes standard with a non-slip walkway and handrail on either drivers or passenger side
  • Standard 5:1 brake winch, with option of 12V electric winch
  • Fully galvanised construction with sprung chassis and wind down legs for extra stability
  • Sheeted 1m sides, loading width at 915mm inside race
  • Self-engaging safety bar and removable pull when in use

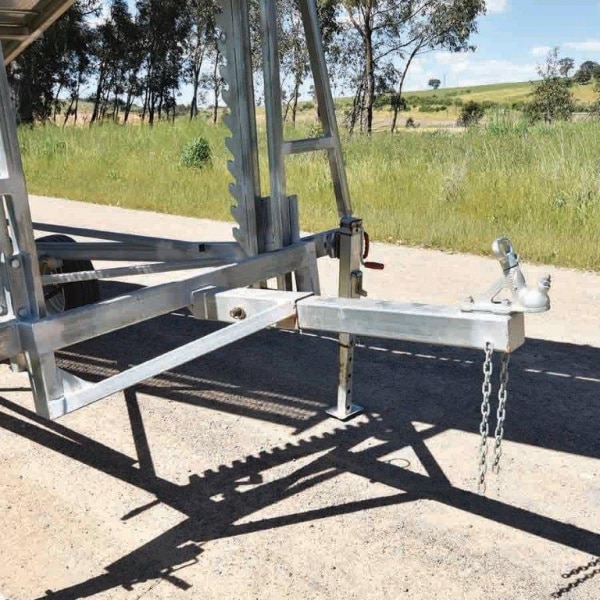

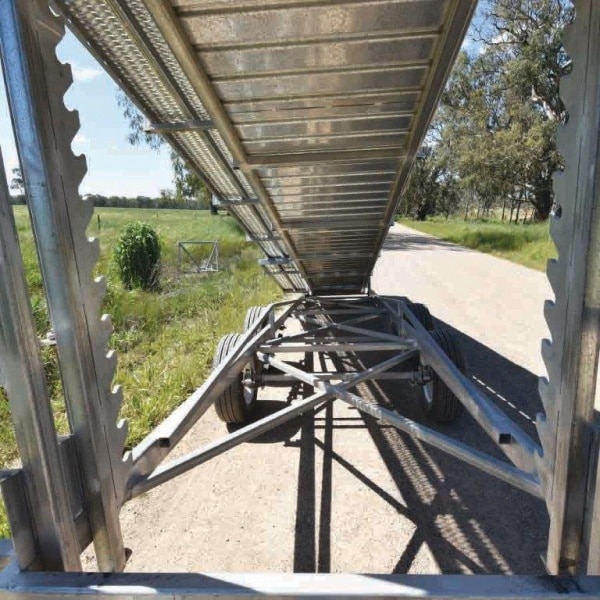

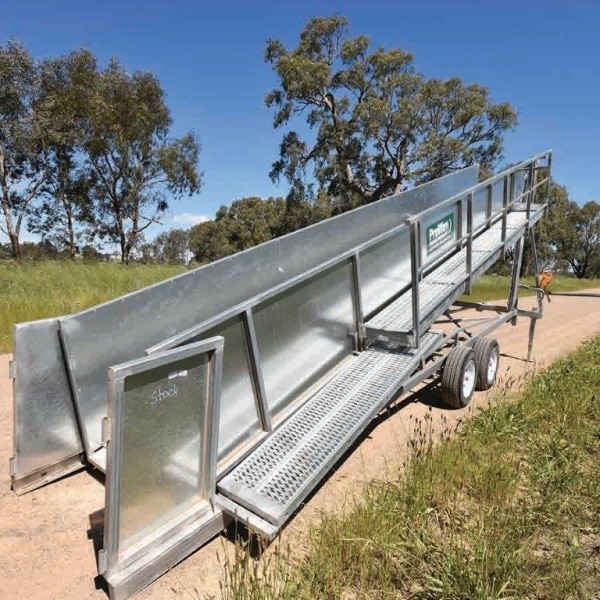

8.0M HEAVY DUTY MOBILE ADJUSTABLE LOADING RAMP

  • Built with a heavier duty frame and twin axle. Recommended for operators who travel greater road kilometres
  • This fully mobile ramp adjusts from ute height to the 3rd deck of a truck
  • Comes standard with a non-slip walkway and handrail on either drivers or passenger side
  • Standard 5:1 brake winch, with option of 12V electric winch
  • Fully galvanised construction with HD sprung chassis and wind down legs for extra stability
  • Sheeted 1m sides, loading width at 915mm inside race
  • Self-engaging safety bar and removable pull when in use

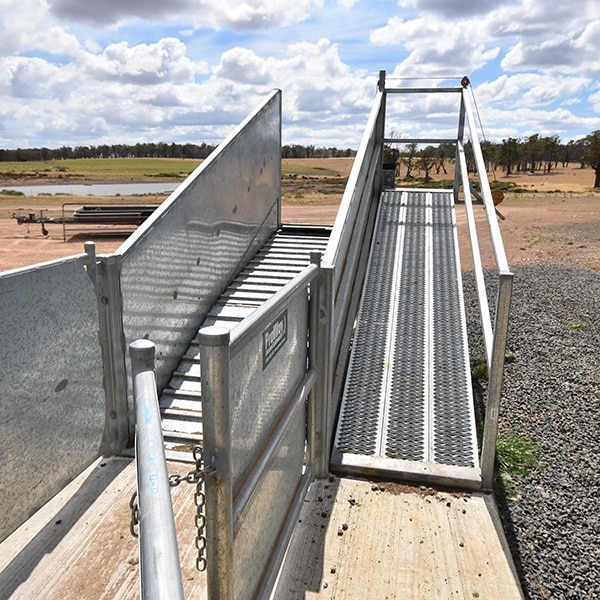

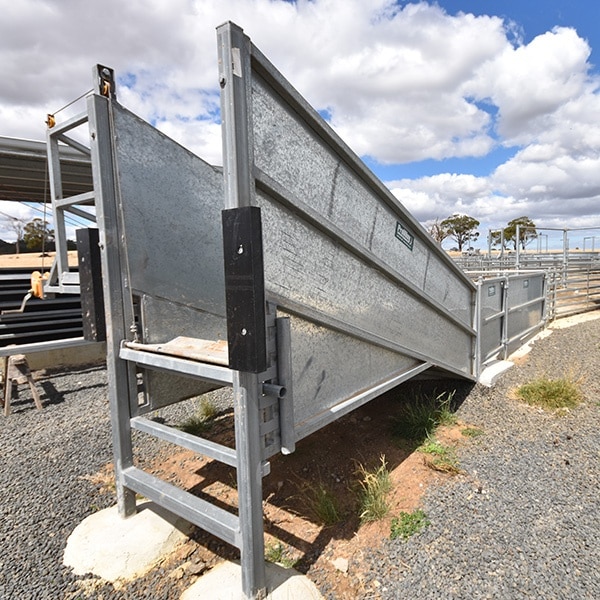

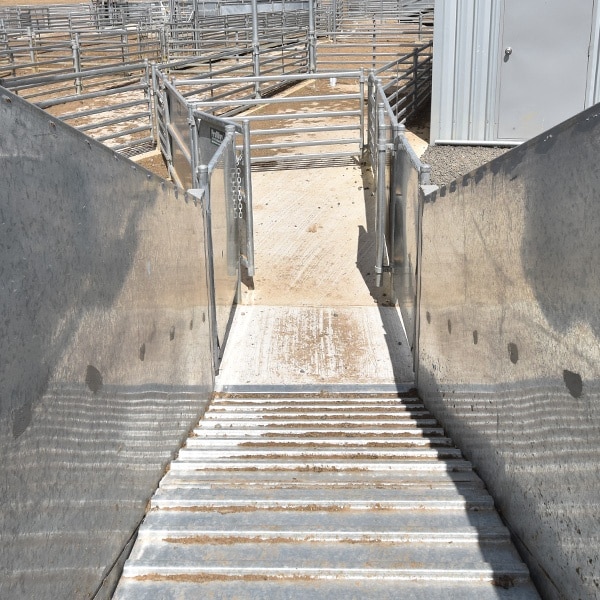

3.3M PERMANENT ADJUSTABLE FLOOR SHEEP RAMP

  • Sheeted 1m sides and loading width of 915mm
  • Drop over flap eliminates gap between truck and ramp
  • Walkway one side for access and safety while the winch adjusts from trailer to truck height
  • Constructed from galvanised materials with galvanised pressed steel floor

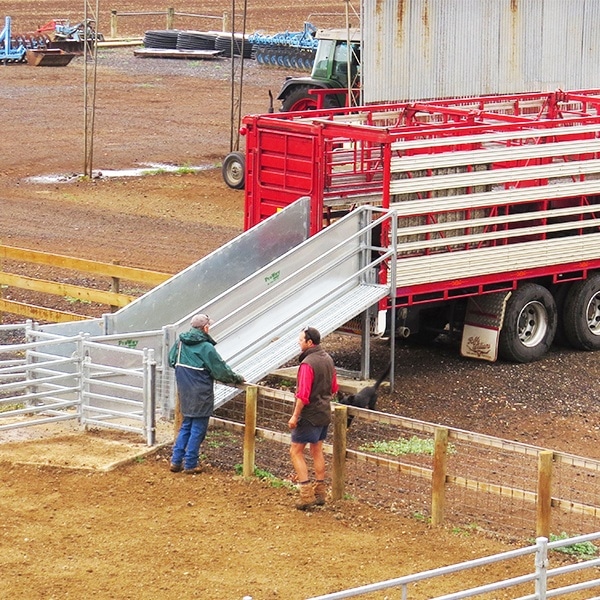

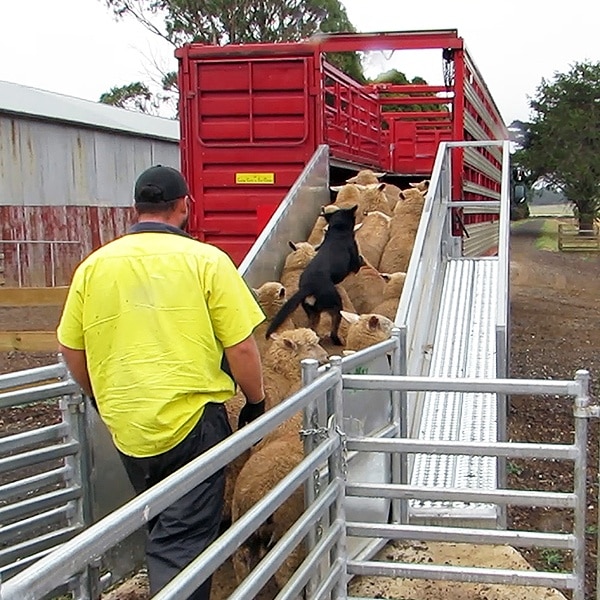

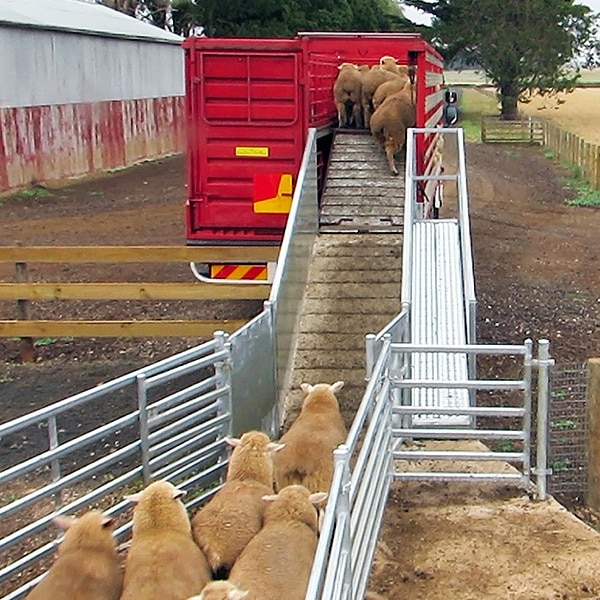

3.3M PERMANENT CONCRETE FLOOR SHEEP RAMP

  • Concrete floor will not rust, rot or move with stock flow
  • Solid noiseless base for sheep to walk up
  • Sheeted 1m sides and loading width of 915mm inside race
  • Drop over flap to eliminate the gaps between trucks and utes
  • Vertical buffer to minimise impact when reversing
  • Walkway one side for access and safety
  • Fully galvanised construction

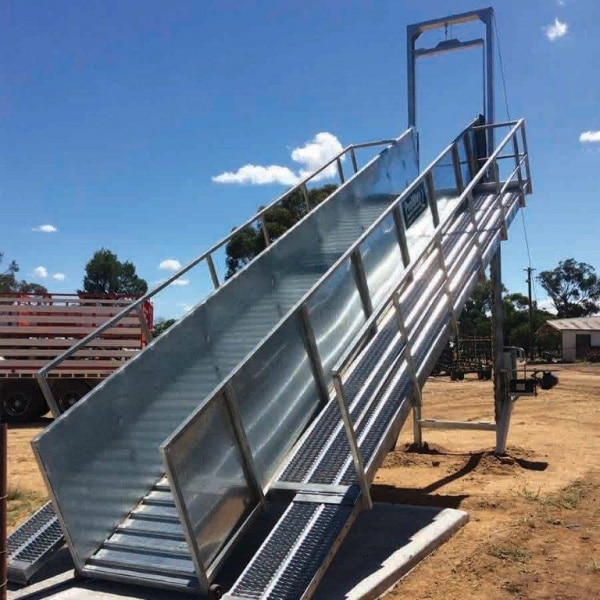

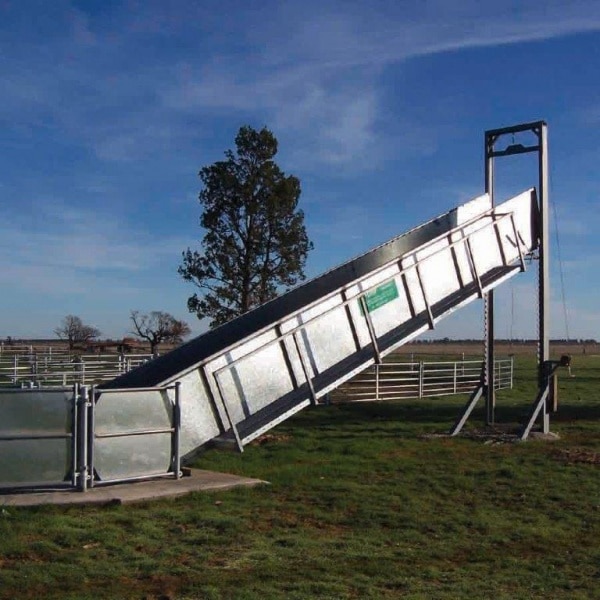

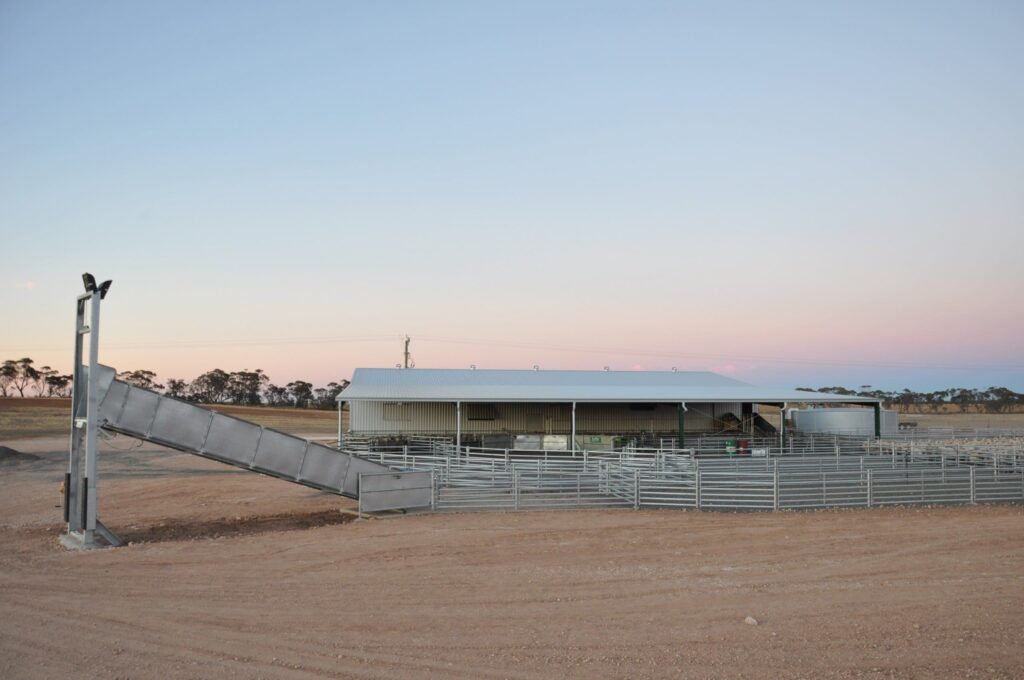

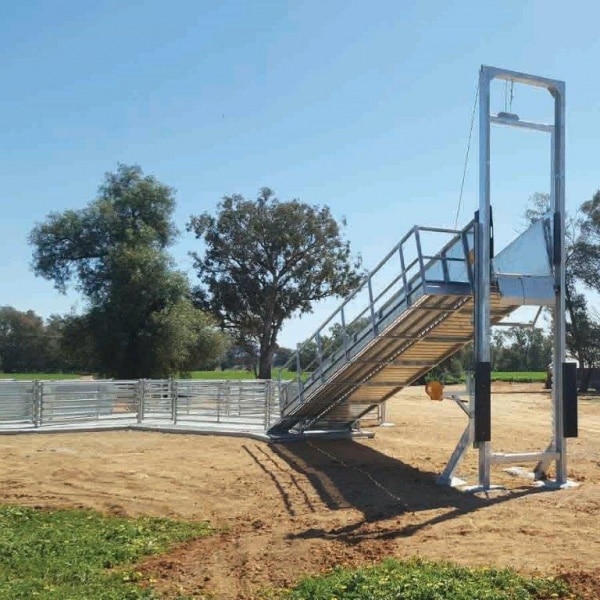

8.0m Permanent Adjustable Loading Ramp

  • Heavy duty H frame and gantry (250 UB columns) incorporating brace
  • Ramp adjusts from ute height to the 3rd deck of a truck
  • Comes standard with a non-slip walkway and handrail on either drivers or passenger side
  • Standard 5:1 Brake winch, with option of 12V electric winch
  • Fully galvanised construction
  • Sheeted 1m sides, loading width at 915mm inside race for good sheep flow
  • Self-engaging safety bar

8.0M PERMANENT ADJUSTABLE LOADING RAMP FROM SHED

  • Able to load from shed or retaining wall to reach 4th deck
  • Heavy duty H frame and gantry (250 UB columns) incorporating brace
  • Comes standard with a non-slip walkway and handrail on either drivers or passenger side
  • Standard 5:1 brake winch, with option of 12V electric winch
  • Fully galvanised construction
  • Sheeted 1m sides, 925mm loading width  to encourage sheep flow
  • Self-engaging safety bar

ADJUSTABLE FIRST DECK LOADING RAMP

  • Commercial grade loading ramp designed for high throughput
  • Walkway and handrail one side for safe operator access
  • Heavy Duty 150 PFC gantry with lock in safety bar
  • 1.0m sheeted ramp sides, 925mm loading width encourages stock flow
  • Drop over flap eliminates gap between truck and ramp
  • Hand winch to raise and lower height, which adjusts from box trailers to the 1st deck of a truck
  • All galvanised construction with galvanised pressed steel floor

9.0M SUPER HEAVY DUTY COMMERCIAL RAMP

  • Commercial grade loading ramp designed for high throughput
  • Walkway and handrail both sides for safe operator access
  • Super heavy duty gantry with Kito ER 2020L hoist – 2 tonne capacity / 3 phase
  • 1.0m sheeted ramp sides, 925mm loading width to encourage sheep flow
  • Drop over flap eliminates gap between truck/trailer and ramp
  • Sprung, sheeted PA door at ramp end for safe operator access
  • Electric which adjusts from 1st to 4th deck of a truck
  • All galvanised construction with galvanised pressed steel floor
