Temperate Breed Cattle Yard Features

ProWay products are proudly designed and manufactured in Australia, and installed all over the world.

Continual innovation of livestock handling technology

At ProWay, we pride ourselves on innovation and are proudly involved in the progression of livestock handling technology.

A wide range of features that are catered to southern operations and temperate breeds

We understand that no two businesses are the same and design facilities to address the unique circumstances specific to your operation.

ProWay have a range of features that are catered to Bos Taurus and European Breed Cattle in temperate climates. Our custom design service provides ProWay customers with unique solutions, meaning no two facilities are ever the same.

Refined over time our products focus on safety and stock flow, quality materials and excellent working efficiency of the design

ProWay Temperate Climate Cattle Yard highlights

Temperate Cattle Breed Yard Features



Looking for Tropical Climate Features? Click here.

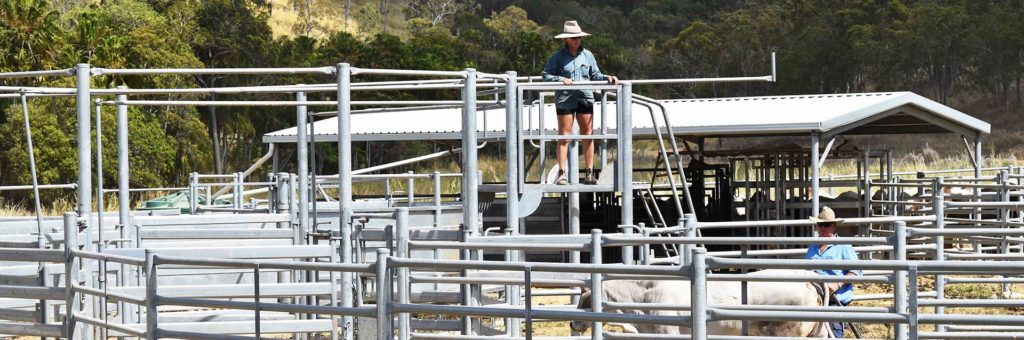

  • Ground engaging posts and panels

    • All permanent ProWay cattle yard posts are concreted in the ground for superior strength.
    • Every panel is made specifically for the individual job. We build panels to suit the design rather than design to suit the panels.
    • All posts are hot dipped galvanised which is superior to electroplated pipe.
    • For temperate breeds standard post size is 80NB medium wall (4mm) OD=88.9mm.
    • 100NB post upgrade is available for extra strength and longevity.

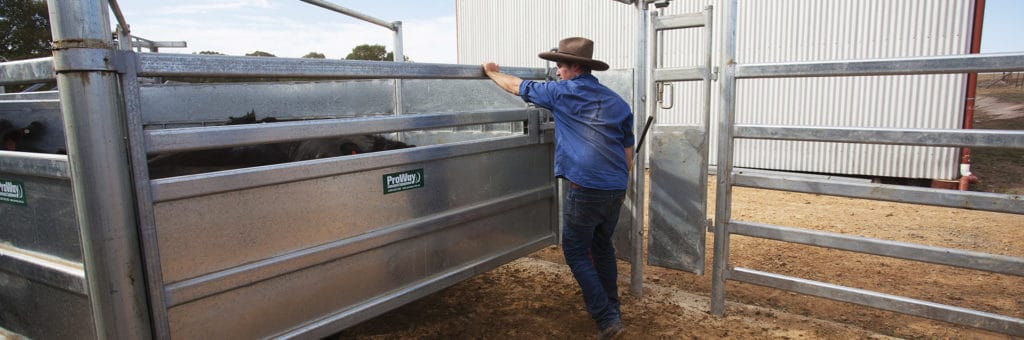

  • Rotary Force

    • Manual or remote options available.
    • Gate follows cattle around rolled panels reducing area which encourages cattle to enter the race.
    • Padded brake drags around rolled panels and locks in position.
    • Braced overhead for strength and durability.
    • Sheeted panels aid stock movement and operator safety.
    • Separates the handler and stock in the forcing pen, therefore eliminating the risk of injury.
    • Centre post is heavy duty galvanised 150NB (165mm OD).
    • The gate has two large collars with grease nipples.
    View Product

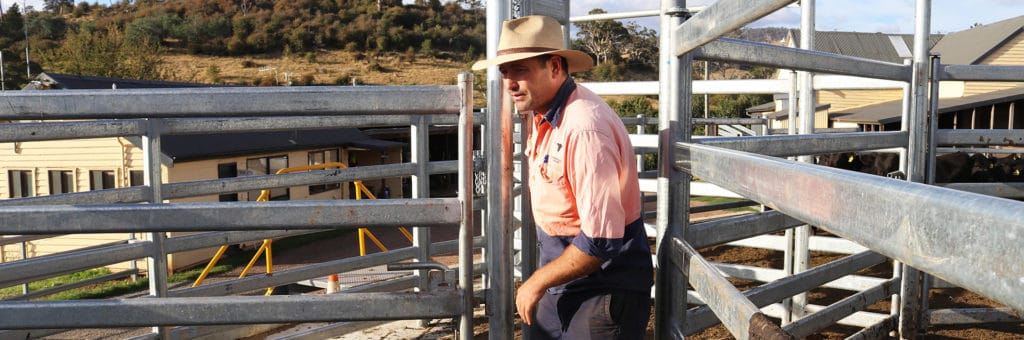

  • Manways

    • Spring loaded 600mm wide personal gates.
    • Provide quick safe access around your yards.
    • Implemented in key areas within the yard design to maximise efficiency, particularly the force and working areas.
    View Product

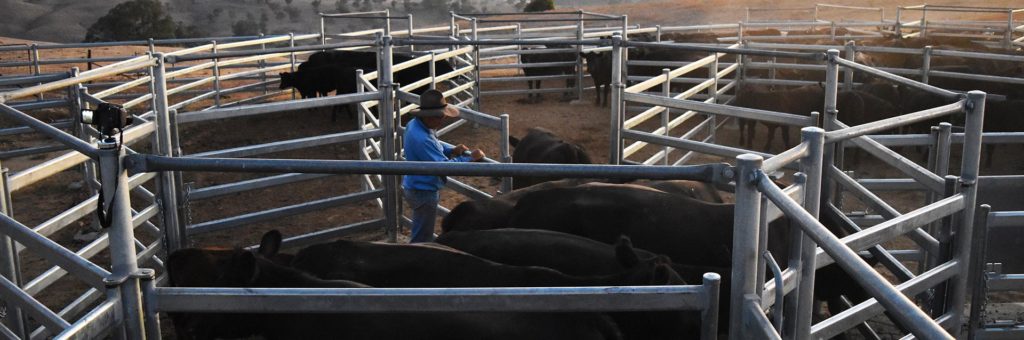

  • Pound Yard

    • Pounds allow for drafting cattle and calves in up to 7 directions.
    • Raised Crows Nest platforms give control and ability to draft up to 7 gates from one raised position.
    • Gates have a chain and spring catch to lock them in place when not in use.
    • Gates are also braced overhead for extra strength.
    • The pound is often used as an entry to the working area allowing multiple yards access to the force and race.
    View Product

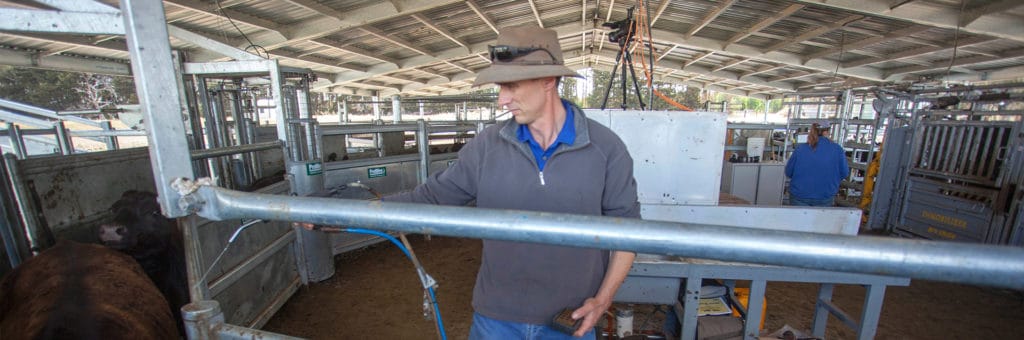

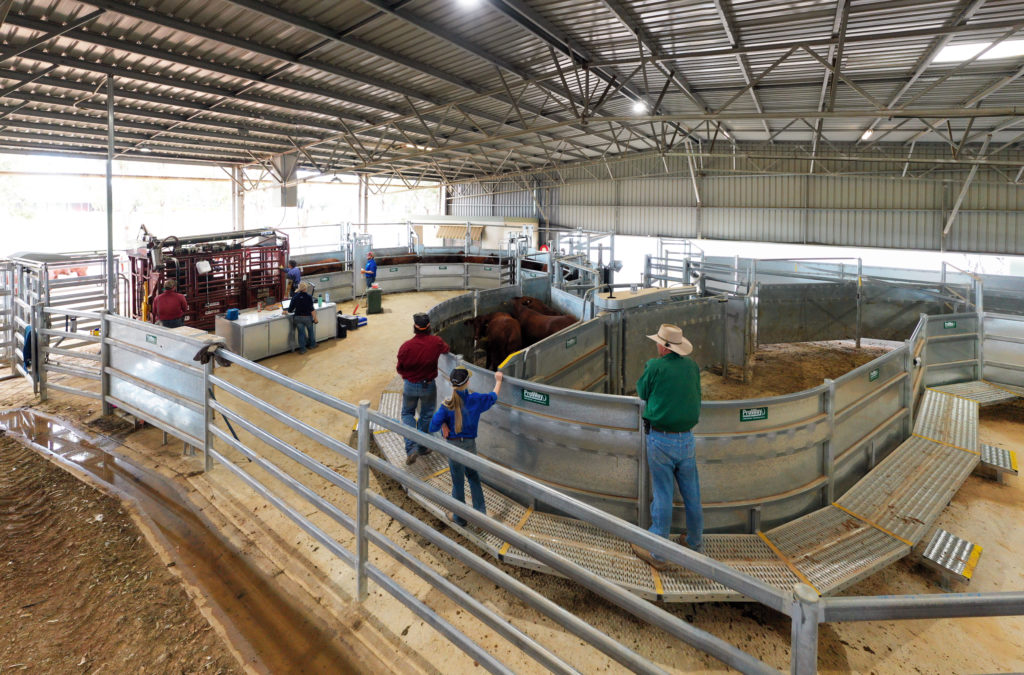

  • Undercover Work Areas

    • Provides weather protection to operators, stock and yards to increase efficiency, productivity and longevity of stockyards.
    • Heavy duty steal construction with colour bond or zinc roof option.
    • ProWay can organise roof erection during the construction of yards, or as a standalone structure.
    • We are able to design your shed around yards, or design yards around an existing shed to maximise coverage and utilise columns and space.

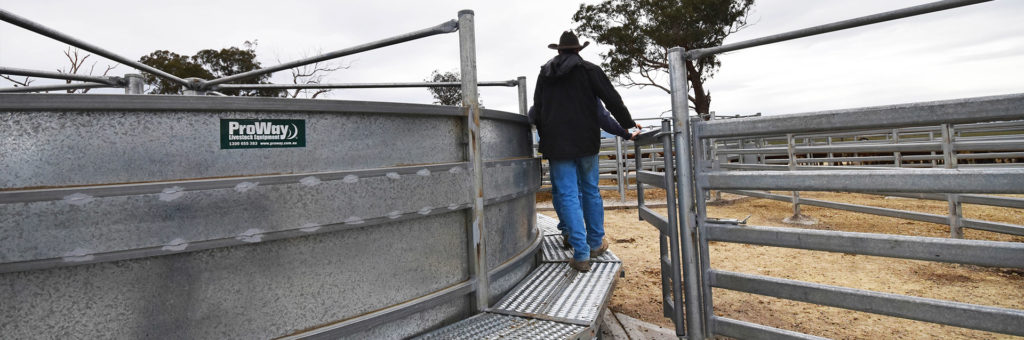

  • Elevated Walkways

    • Elevate operator to a safe, comfortable working height above stock.
    • By following the walkway around the force yards and race the operator is able to encourage stock flow from a more commanding position.
    • Non-slip walkway mesh.
    • Cut and installed onsite to ensure neat and robust fit.
    • Concreted in ground for strength.
    View Product
  • Ground engaging posts and panels
  • Rotary Force
  • Manways
  • Pound Yard
  • Undercover Work Areas
  • Elevated Walkways

Rail Options

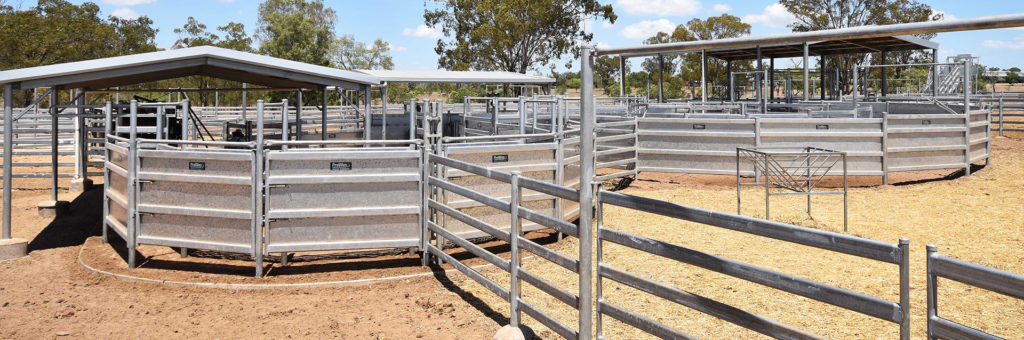

  • 120 Cattle Rail

    • 120CR panels and gates stand at 1750mm and include 5 x 120mm rails and 100NB galvanised pipe posts.
    • Panels are generally made with a post at one end and a curved plate at the other which are welded on site.
    • The 120 x 48mm rail is an excellent visual barrier, while the 2mm wall thickness and DuraGal® zinc coating provide the highest strength and longevity on the market (min. zinc coating 100g/m3).
    • 120CR is generally utilised on tropical cattle operations, however has been applied to southern ProWay facilities and cattle studs where high strength is paramount.
    View Product

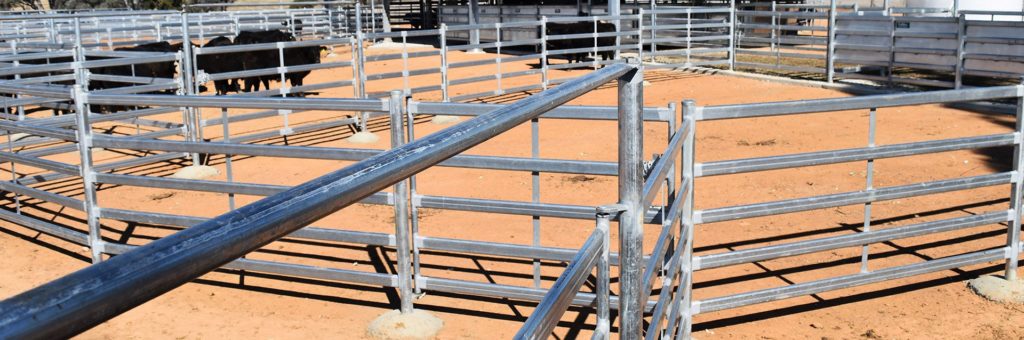

  • 97 Cattle Rail

    • Cattle panels are made from five 97 x 42mm cattle rails and stand at 1.75m.
    • ProWay’s cattle rail has been developed specifically for use in yards.
    • Rails are made from high tensile (grade 450) galvanised steel.
    • Panels are generally made with a post at one end and a plate at the other which are welded on site.
    • All panels are made to order for each individual yard design.
    • All ends of the rail are notched for the neatest and strongest join to round posts.
    View Product

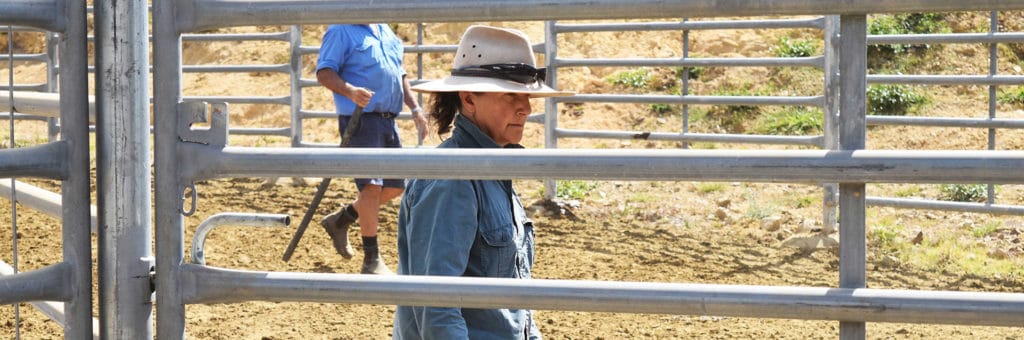

  • 50NB Pipe Rail

    • The 50NB pipe rail range is available in a 5 or 6 rail configuration and is built with 50NB (60.3mm OD) galvanised pipe rails.
    • Rails are crimped and welded to fully galvanised 80NB (88.9mm OD) posts.
    • 100NB post upgrade is available for extra strength and longevity.
    • Panels and gates are braced for strength when over 2.5m.
    • All panels are made to order for each individual yard design.
    • We build panels to fit the design rather than design-fit fixed length panels.
    View Product

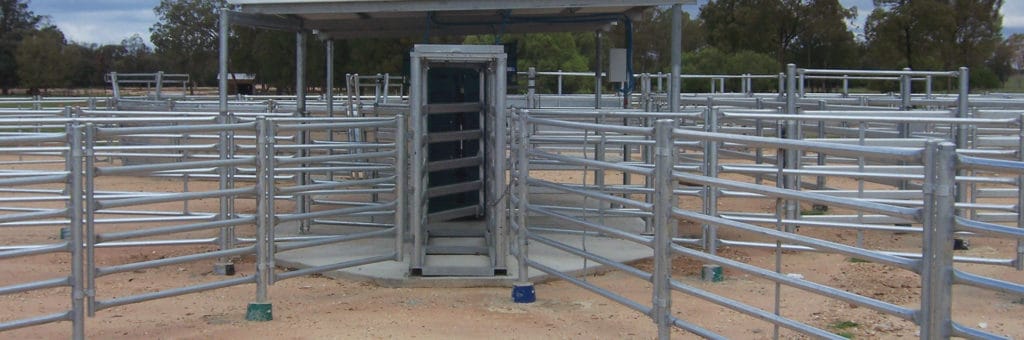

  • 40NB Pipe Rail

    • The 40NB pipe rail range is available in a 6 rail configuration and are is with 40NB (48.3 OD) galvanised pipe rails.
    • Rails are crimped and welded to fully galvanised 80NB (88.9mm OD) posts.
    • 100NB post upgrade is available for extra strength and longevity.
    • Panels and gates are braced for strength when over 2.5m.
    • All panels are made to order for each individual yard design.

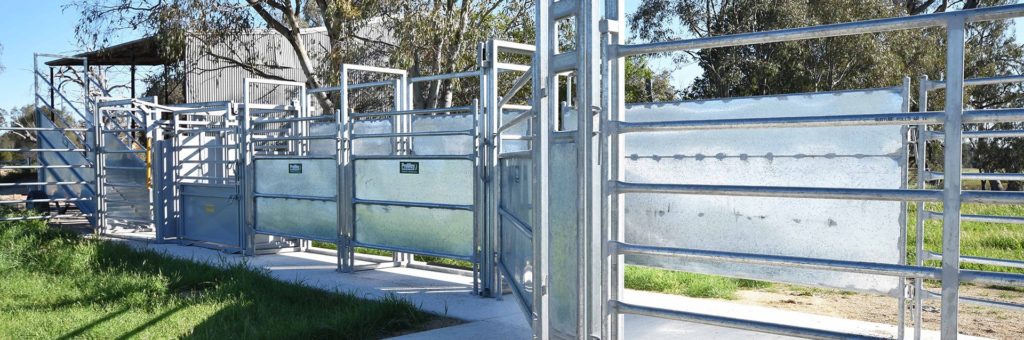

  • 32NB Pipe Rail

    • The 32NB pipe rail range is a lighter alternative to the cattle rail made from six 32NB (42.4mm OD) rails and stands at 1.75m.
    • It is an economical alternative for backyards and holding yards.
    • Rails are crimped and welded to fully galvanised 80NB (88.9mm OD) posts.
    • Panels and gates are braced for strength when over 2.5m.
    • All panels are made to order for each individual yard design.

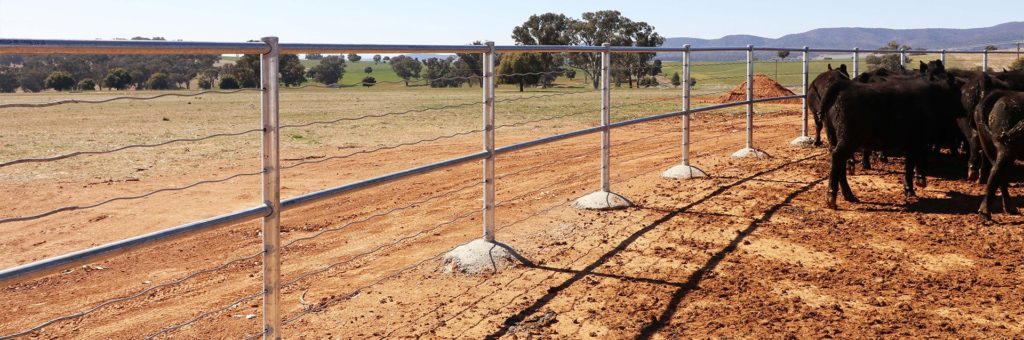

  • Cooler Fence (Cable Backyards)

    • ProWay can supply two different cable options which are suitable for backyard and large holding pens at a reduced cost to the standard panel range.
    • Posts come pre-drilled and are fitted with cable plugs for longevity.
    • Strainer assemblies are supplied.
    • Cable needs to be threaded on site.
    • Post spacings are generally 2.5m with the following options:
    • 2 x 50NB rails, 6 cables.
    • 1 x 50NB rail, 7 cables.
    View Product
  • 120 Cattle Rail
  • 97 Cattle Rail
  • 50NB Pipe Rail
  • 40NB Pipe Rail
  • 32NB Pipe Rail
  • Cooler Fence (Cable Backyards)

Gate Options

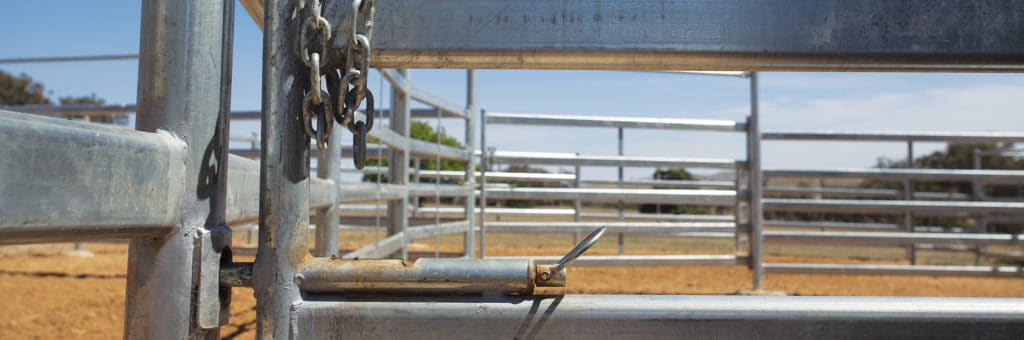

  • Standard Chain and Catch

    • Chains and the ProWay HAZ catch come standard on all 97CR, 120CR and 50NB gates (except double gates which are chain only).
    • For overnight holding and extra security, the chains can be dropped into the inverted “T” slot which is welded to the rail.
    • The catch has been developed and patented by ProWay as an effective multi-purpose, heavy duty gate catch.
    • For safety, it is fully contained within the line of the gate and not welded onto the side of the gate.
    • The catch can be locked open in one movement, so that no part of the bolt is exposed. This eliminates the chance of injury to cattle particularly when drafting with a gate.
    • The ring pull bolt system is simple to operate from either side of the gate and closes into a fitted pocket on the opposing post.
    View Product

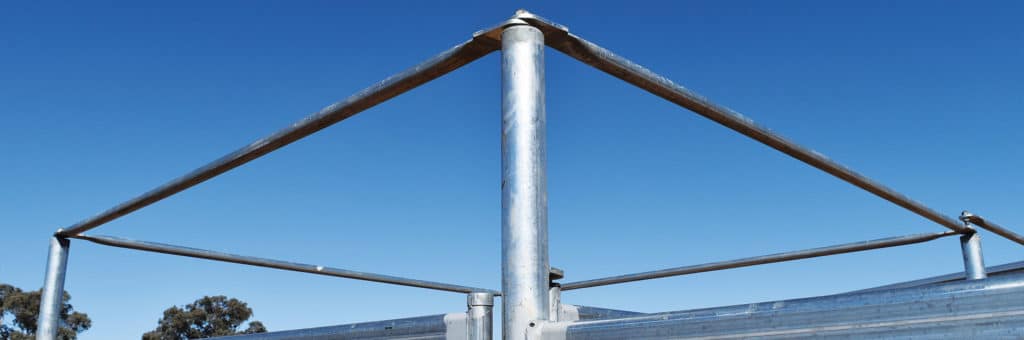

  • Overhead Bracing

    • Gates can be upgraded to include overhead bracing where applicable.
    • Single gates are braced with a 40NB pipe.
    • Double gates span over 3.1m are braced with 50NB pipe.
    • Gates are braced at 2.2m (from the ground) as standard or up to 3.3m for throughways which require high clearance (i.e. horseback/machinery).
    View Product

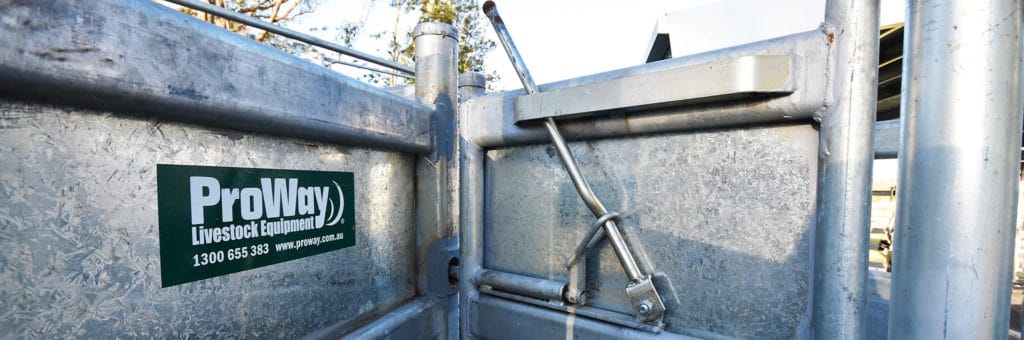

  • Lever Haz Catch

    • Developed and patented by ProWay.
    • For animal safety, the catch is fully contained inside the gate, not welded on the side.
    • This prevents bruising to stock and limits damage to the catch itself.
    • The catch can be locked open in one movement, so that no part of the bolt is exposed.
    • Lever haz catches are particularly useful in situations where catch access is limited.
    • Generally, these catches are installed on the outside of sheeted gates, or where gates need to be operated from a walkway.
    View Product

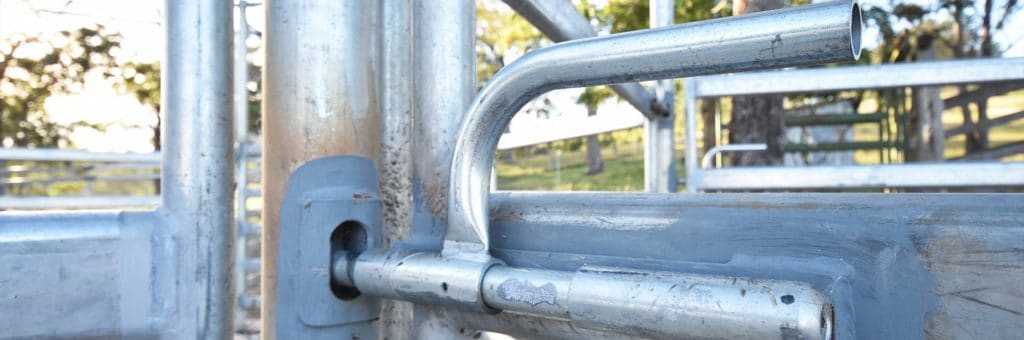

  • Poplar Slam Catch

    • Poplar slam catches are another option for our standard gate range and are fitted to one side of the rail.
    • Due to the lever handle, gates fitted with poplar catches are simple and quick to open and can be thrown shut.
    View Product
  • Standard Chain and Catch
  • Overhead Bracing
  • Lever Haz Catch
  • Poplar Slam Catch

Race Options

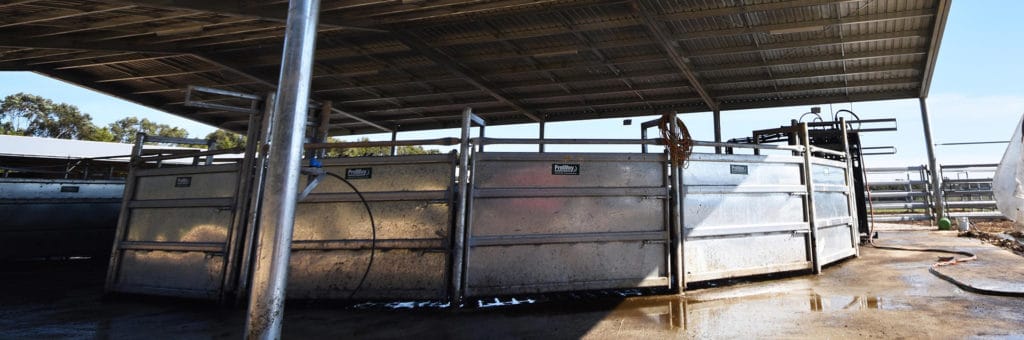

  • H-Race ¾ Sheeted Inside, Fully Outside

    • The H-Race has full sheeting on the outside of the race preventing distractions outside of the working area from effecting stock flow.
    • The inner arc of the race is sheeted ¾ of the outside height to allow visibility and access to stock.
    • Races are available at any length and are designed with suitable radial arcs to promote stock flow.
    • Strength is given by the combination of a heavy duty galvanised frame and underground bracing which is concreted into the slab work.
    • ProWay can also build non-sheeted H-races using any of our standard rail options.
    View Product

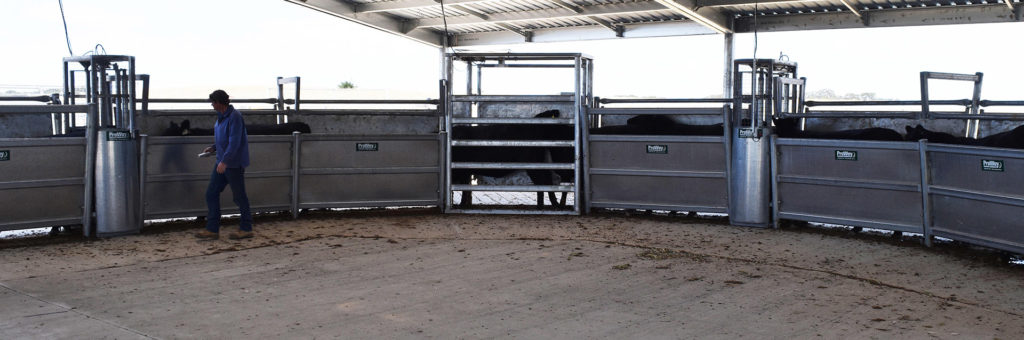

  • V-Race ¾ Sheeted Inside, Fully Outside

    • The V-race includes a fully sheeted outer arc which prevents legs and heads getting out and improves stock flow.
    • These sections are also made as safety release gates. They can be quickly opened to free overturned stock with two bolt catches (both high and low) so gate sections have no flex.
    • The inner arc of the race is sheeted ¾ of the outside height to allow visibility and access to stock.
    • The ‘V’ profile also minimises the chance of small stock turning around in the race.
    • The curve of the design gives better draw up the race, with stock circling past the operator.
    View Product

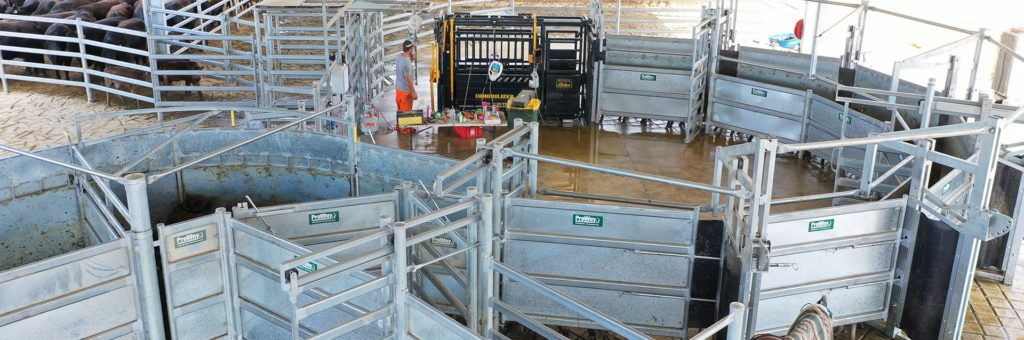

  • Adjustable Sided Race

    • The lever operated system allows for quick adjustment between widths of 850mm and 600mm at increments of 50mm.
    • The race gives flexibility to your enterprise as there is suitability for multiple breed, size and age operations.
    • It also stops smaller cattle turning around which can occur in a standard fixed width race.
    • It can be implemented to suit both curved and straight race options.
    • Eliminates the necessity of a calf race.
    • Optional overhanging rail allows unrestricted access to cattle.
    • Can be adapted to pneumatic or sliding race gates.
    View Product

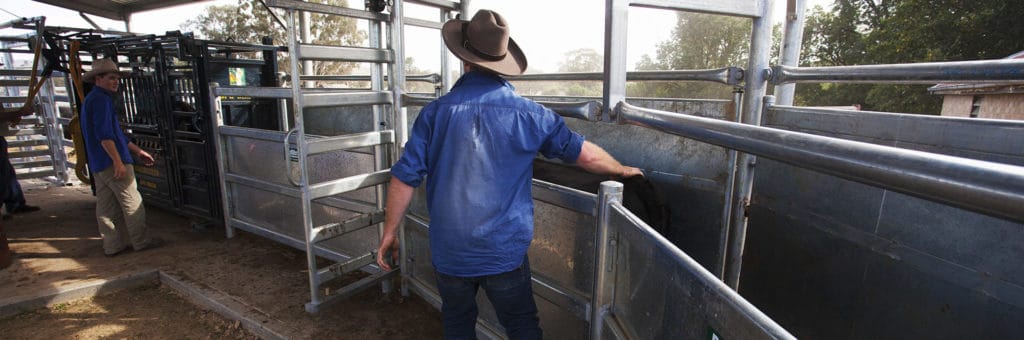

  • V-Overhanging Rail

    • ProWay have developed an overhanging bracing system that allows fluid movement for the operator while treating cattle, without jeopardising strength and top rail height.
    • Without the overhanging rail there are points in the race that can be hard to access due to post obstruction.
    • The overhanging rail creates a continuous gap that allows access to cattle at any point within the race.
    View Product

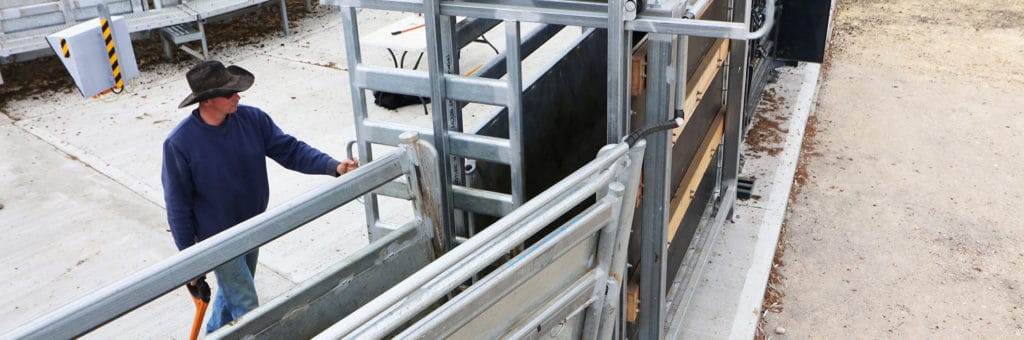

  • Sliding Gates

    • Two styles of sliding gates are available.
    • The conventional pull out sliding gate has no overhanging track on the operators side. The gates are reversible and can be used from either side. They open towards the operator.
    • The alternative style is designed for use with walkways. The gate opens away from the operator, so that the walkway is not blocked by the open gate. It is operated by a lever type handle which drops down out of the road. It also features no overhead gear on the operators’ side.
    View Product

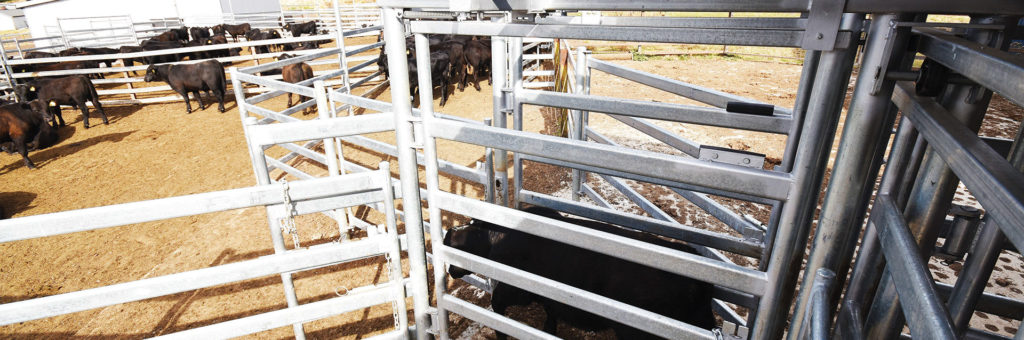

  • 3 or 5 Way Manual Drafter

    • The cattle 3 or 5-way manual drafter provides quick and safe drafting in front of a crush.
    • It is designed with access gates and slam catches for quick and safe access to animals.
    • 97 or 120 Cattle Rail available for strength and non-bruise.
    • Sliding gate can be used as a baulk gate.
    • Rubber stoppers for quiet operation.
    • Hot dipped channel base for longevity.
    View Product

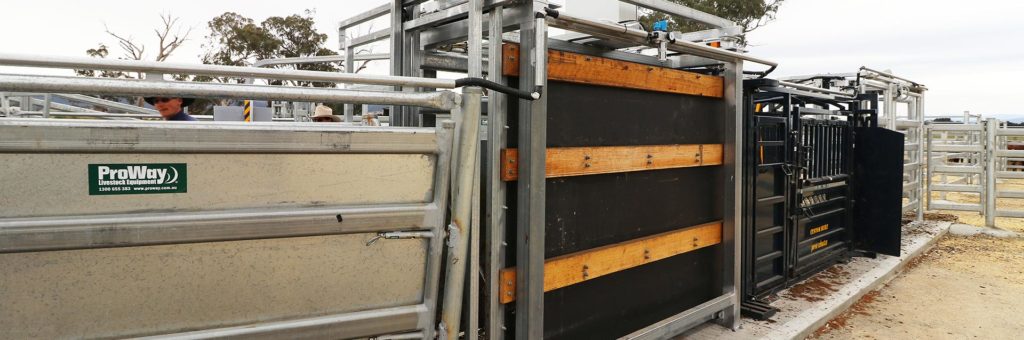

  • Cattle Weighbox

    • ProWay’s cattle weighbox is all galvanised steelwork and designed to suit all cattle sizes.
    • The offside is made from timber for EID compatibility.
    • The nearside is sheeted with galvabond sheeting and adjusts to suit different sized cattle.
    • Added features include:
      • Hanging weighbars that sit above the box on ‘U’ hoops.
      • A front sliding door – or one made for rear operation.
      • A one side gate for drafting and/or safety release.
      • An adjustable side to stop animals turning around.
    View Product

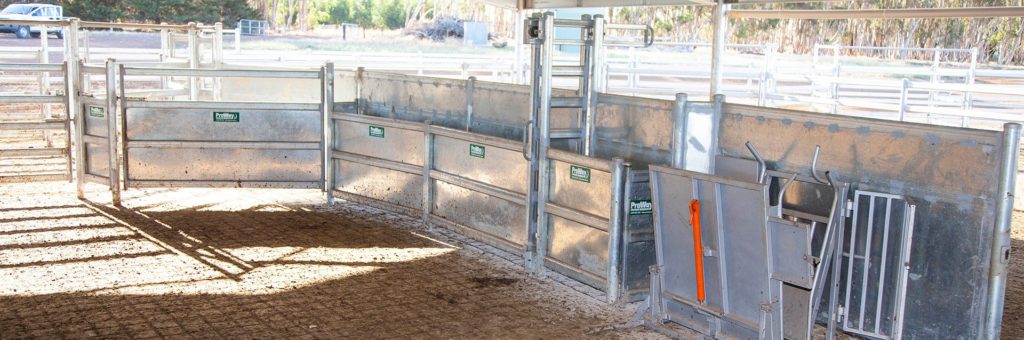

  • Fully Sheeted Calf Race

    • The ProWay calf race is 1.1m high to stop bigger calves jumping out.
    • It has slam shut gates at both ends for quick closing and can include a sliding gate positioned to hold one calf before the cradle.
    • The race length is determined by the size of the operation and panels can be unsheeted on request.
    • Depending on requirements, ProWay can also supply a baulk bar to stop calves jumping out or over each other.
    • An overhanging rail can also be included.
    View Product
  • H-Race ¾ Sheeted Inside, Fully Outside
  • V-Race ¾ Sheeted Inside, Fully Outside
  • Adjustable Sided Race
  • V-Overhanging Rail
  • Sliding Gates
  • 3 or 5 Way Manual Drafter
  • Cattle Weighbox
  • Fully Sheeted Calf Race
